#include <otbLineSegmentDetector.h>

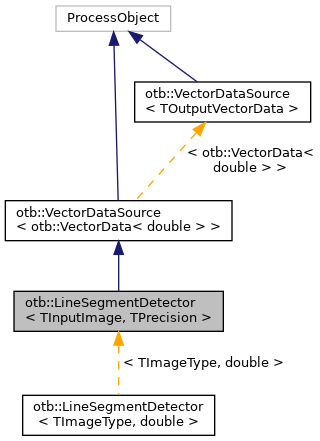

Inheritance diagram for otb::LineSegmentDetector< TInputImage, TPrecision >:

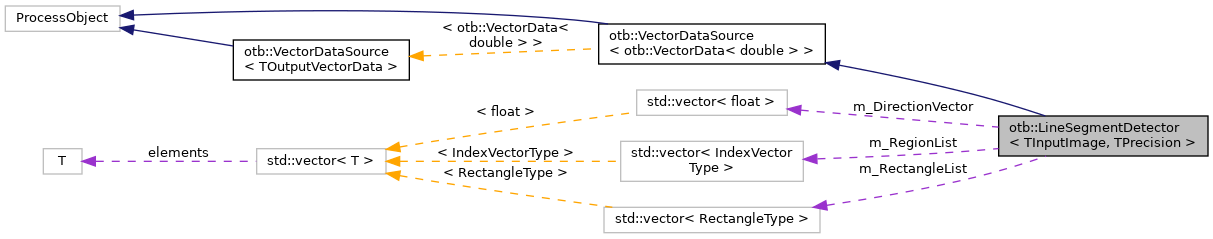

Collaboration diagram for otb::LineSegmentDetector< TInputImage, TPrecision >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef CoordinateHistogramType::iterator	CoordinateHistogramIteratorType

typedef std::vector< IndexVectorType >	CoordinateHistogramType

typedef VectorDataType::DataNodeType	DataNodeType

typedef DirectionVectorType::iterator	DirectionVectorIteratorType

typedef std::vector< float >	DirectionVectorType

typedef GradientFilterType::Pointer	GradientFilterPointerType

typedef itk::GradientRecursiveGaussianImageFilter< OutputImageType >	GradientFilterType

typedef GradientFilterType::OutputImageType	GradientOutputImageType

typedef IndexVectorType::iterator	IndexVectorIteratorType

typedef std::vector< OutputIndexType >	IndexVectorType

typedef TInputImage	InputImageType

typedef InputImageType::IndexType	InputIndexType

typedef InputImageType::PixelType	InputPixelType

typedef LabelImageType::Pointer	LabelImagePointerType

typedef otb::Image< unsigned char, 2 >	LabelImageType

typedef VectorDataType::LineType	LineType

typedef MagnitudeFilterType::Pointer	MagnitudeFilterPointerType

typedef itk::UnaryFunctorImageFilter< GradientOutputImageType, OutputImageType, Functor::MagnitudeFunctor< typename GradientOutputImageType::PixelType, TPrecision > >	MagnitudeFilterType

typedef MagnitudeImageType::Pointer	MagnitudeImagePointerType

typedef MagnitudeFilterType::OutputImageType	MagnitudeImageType

typedef MagnitudeFilterType::OutputImageType::PixelType	MagnitudePixelType

typedef OrientationFilterType::Pointer	OrientationFilterPointerType

typedef itk::UnaryFunctorImageFilter< GradientOutputImageType, OutputImageType, Functor::OrientationFunctor< typename GradientOutputImageType::PixelType, TPrecision > >	OrientationFilterType

typedef InputImageType::PointType	OriginType

typedef OutputImageDirType::RegionType	OutputImageDirRegionType

typedef OrientationFilterType::OutputImageType	OutputImageDirType

typedef Image< TPrecision, 2 >	OutputImageType

typedef OutputImageType::IndexType	OutputIndexType

typedef OutputImageType::PixelType	OutputPixelType

typedef OutputImageType::SizeType	OutputSizeType

typedef itk::SmartPointer< Self >	Pointer

typedef VectorDataType::PointType	PointType

typedef RectangleType::iterator	RectangleIteratorType

typedef std::vector< RectangleType >	RectangleListType

typedef RectangleListType::iterator	RectangleListTypeIterator

typedef std::vector< double >	RectangleType

typedef InputImageType::RegionType	RegionType

typedef LineSegmentDetector	Self

typedef InputImageType::SizeType	SizeType

typedef InputImageType::SpacingType	SpacingType

typedef VectorDataSource< VectorData< TPrecision > >	Superclass

typedef VectorData< TPrecision >	VectorDataType

typedef std::vector< IndexVectorType >	VectorOfIndexVectorType

typedef LineType::VertexType	VertexType

Public Types inherited from otb::VectorDataSource< otb::VectorData< double > >
typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType

typedef otb::VectorData< double > ::Pointer	OutputVectorDataPointer

typedef otb::VectorData< double >	OutputVectorDataType

typedef itk::SmartPointer< Self >	Pointer

typedef VectorDataSource	Self

typedef itk::ProcessObject	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

Public Member Functions inherited from otb::VectorDataSource< otb::VectorData< double > >
virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

virtual void	GraftOutput (itk::DataObject *output)

virtual void	GraftNthOutput (unsigned int idx, itk::DataObject *output)

virtual OutputVectorDataType *	GetOutput (void)

virtual OutputVectorDataType *	GetOutput (DataObjectPointerArraySizeType idx)

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from otb::VectorDataSource< otb::VectorData< double > >
static Pointer	New ()

VectorOfIndexVectorType	m_RegionList

DirectionVectorType	m_DirectionVector

LabelImagePointerType	m_UsedPointImage

RectangleListType	m_RectangleList

double	m_Threshold

double	m_Prec

double	m_DirectionsAllowed

unsigned int	m_MinimumRegionSize

GradientFilterPointerType	m_GradientFilter

MagnitudeFilterPointerType	m_MagnitudeFilter

OrientationFilterPointerType	m_OrientationFilter

virtual void	SetInput (const InputImageType *input)

virtual const InputImageType *	GetInput (void)

LabelImagePointerType	GetMap ()

MagnitudeImagePointerType	GetGradMod ()

OutputImageDirType::Pointer	GetGradOri ()

	LineSegmentDetector ()

	~LineSegmentDetector () override

void	GenerateInputRequestedRegion () override

void	GenerateData () override

virtual CoordinateHistogramType	SortImageByModulusValue (MagnitudeImagePointerType modulusImage)

virtual void	LineSegmentDetection (CoordinateHistogramType &CoordinateHistogram)

virtual bool	IsNotUsed (InputIndexType &index) const

virtual bool	IsUsed (InputIndexType &index) const

virtual bool	IsNotIni (InputIndexType &index) const

virtual void	SetPixelToUsed (InputIndexType index)

virtual void	SetPixelToNotIni (InputIndexType index)

virtual void	SetRegionToNotIni (IndexVectorType region)

virtual bool	GrowRegion (InputIndexType index, IndexVectorType &region, double &regionAngle)

virtual bool	IsAligned (double Angle, double regionAngle, double prec) const

virtual int	ComputeRectangles ()

virtual RectangleType	Region2Rectangle (IndexVectorType region, double regionAngle)

virtual double	ComputeRegionOrientation (IndexVectorType region, double x, double y, double angleRegion) const

virtual double	angle_diff (double a, double b) const

virtual double	ComputeRectNFA (const RectangleType &rec) const

virtual double	ImproveRectangle (RectangleType &rectangle) const

virtual double	NFA (int n, int k, double p, double logNT) const

virtual void	CopyRectangle (RectangleType &rDst, RectangleType &rSrc) const

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	LineSegmentDetector (const Self &)=delete

void	operator= (const Self &)=delete

Additional Inherited Members
Protected Member Functions inherited from otb::VectorDataSource< otb::VectorData< double > >
	VectorDataSource ()

	~VectorDataSource () override

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

virtual void	AllocateOutputs ()

Detailed Description

template<class TInputImage, class TPrecision = double>
class otb::LineSegmentDetector< TInputImage, TPrecision >

this class implement a fast line detector with false detection control using the a contrario method

The implementation is based on the online version of the lsd documentation and code lsd 1.5. The OTB version use a 3x3 filter to compute the gradient(vs. 2x2 in the original implementation) and implements the density control, the NOTINIT status and the incremental rectangle optimisation.

See also: StreamingLineSegmentDetector (streamed version)

See Publication : " LSD: A line segment detector ", R. Grompone, J.Jackubowicz, J-M.Morel, G.Randall And Website : http://www.ipol.im/pub/algo/gjmr_line_segment_detector/

Definition at line 92 of file otbLineSegmentDetector.h.
