#include <otbMultiImageFileWriter.h>

Inheritance diagram for otb::MultiImageFileWriter:

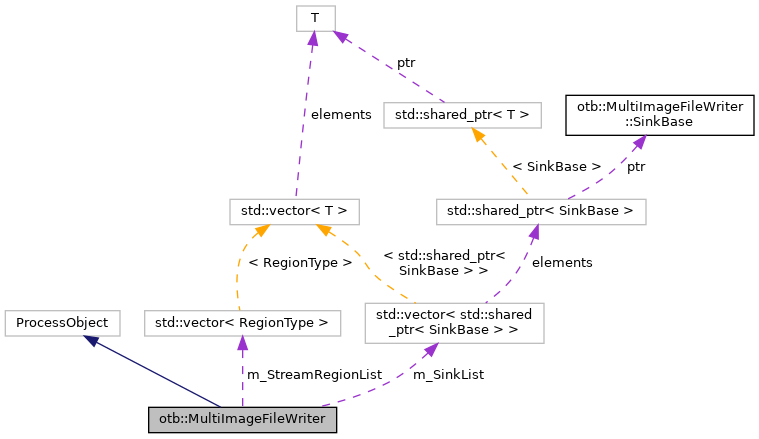

Collaboration diagram for otb::MultiImageFileWriter:

Classes
class	Sink

class	SinkBase

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef itk::ImageBase< 2 >	ImageBaseType

typedef ImageBaseType::IndexType	IndexType

typedef ImageBaseType::IndexValueType	IndexValueType

typedef itk::SmartPointer< Self >	Pointer

typedef ImageBaseType::RegionType	RegionType

typedef MultiImageFileWriter	Self

typedef ImageBaseType::SizeType	SizeType

typedef ImageBaseType::SizeValueType	SizeValueType

typedef itk::ProcessObject	Superclass

Public Member Functions
template<class TImage >
void	AddInputImage (const TImage *inputPtr, const std::string &fileName)

template<class TWriter >
void	AddInputWriter (typename TWriter::Pointer writer)

virtual ::itk::LightObject::Pointer	CreateAnother (void) const

virtual const char *	GetNameOfClass () const

void	SetAutomaticAdaptativeStreaming (unsigned int availableRAM=0, double bias=1.0)

void	SetAutomaticStrippedStreaming (unsigned int availableRAM=0, double bias=1.0)

void	SetAutomaticTiledStreaming (unsigned int availableRAM=0, double bias=1.0)

void	SetNumberOfDivisionsStrippedStreaming (unsigned int nbDivisions)

void	SetNumberOfDivisionsTiledStreaming (unsigned int nbDivisions)

void	SetNumberOfLinesStrippedStreaming (unsigned int nbLinesPerStrip)

void	SetTileDimensionTiledStreaming (unsigned int tileDimension)

virtual void	Update () override

virtual void	UpdateOutputData (itk::DataObject *) override

virtual void	UpdateOutputInformation () override

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
virtual void	GenerateData (void) override

virtual void	GenerateInputRequestedRegion () override

virtual RegionType	GetStreamRegion (int inputIndex)

virtual void	InitializeStreaming ()

	MultiImageFileWriter ()

void	ObserveSourceFilterProgress (itk::Object *object, const itk::EventObject &event)

void	operator= (const MultiImageFileWriter &)=delete

void	ResetAllRequestedRegions (ImageBaseType *imagePtr)

void	UpdateFilterProgress ()

virtual	~MultiImageFileWriter ()

Private Types
typedef otb::Image< unsigned char, 2 >	FakeOutputType

typedef std::vector< std::shared_ptr< SinkBase > >	SinkListType

typedef StreamingManager< FakeOutputType >	StreamingManagerType

Private Attributes
unsigned int	m_CurrentDivision

float	m_DivisionProgress

bool	m_IsObserving

unsigned int	m_NumberOfDivisions

unsigned long	m_ObserverID

SinkListType	m_SinkList

StreamingManagerType::Pointer	m_StreamingManager

std::vector< RegionType >	m_StreamRegionList

Detailed Description

Streams a pipeline with multiple outputs. It writes each output to a file. Inputs are connected to the writer using the AddInputImage method. The type of streaming can be chosen. Each output may have a different size. When the user gives a number of lines per strip or a tile size, the value is interpreted on the first input to deduce the number of streams. This number of streams is then used to split the other inputs.

Definition at line 47 of file otbMultiImageFileWriter.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> otb::MultiImageFileWriter::ConstPointer

Definition at line 54 of file otbMultiImageFileWriter.h.

◆ FakeOutputType

typedef otb::Image<unsigned char, 2> otb::MultiImageFileWriter::FakeOutputType

private

Definition at line 196 of file otbMultiImageFileWriter.h.

◆ ImageBaseType

typedef itk::ImageBase<2> otb::MultiImageFileWriter::ImageBaseType

Public typedefs

Definition at line 58 of file otbMultiImageFileWriter.h.

◆ IndexType

typedef ImageBaseType::IndexType otb::MultiImageFileWriter::IndexType

Definition at line 63 of file otbMultiImageFileWriter.h.

◆ IndexValueType

typedef ImageBaseType::IndexValueType otb::MultiImageFileWriter::IndexValueType

Definition at line 64 of file otbMultiImageFileWriter.h.

◆ Pointer

typedef itk::SmartPointer<Self> otb::MultiImageFileWriter::Pointer

Definition at line 53 of file otbMultiImageFileWriter.h.

◆ RegionType

typedef ImageBaseType::RegionType otb::MultiImageFileWriter::RegionType

Definition at line 62 of file otbMultiImageFileWriter.h.

◆ Self

typedef MultiImageFileWriter otb::MultiImageFileWriter::Self

Standard class typedefs.

Definition at line 51 of file otbMultiImageFileWriter.h.

◆ SinkListType

typedef std::vector<std::shared_ptr<SinkBase> > otb::MultiImageFileWriter::SinkListType

private

The list of inputs and their associated parameters, built using AddInput

Definition at line 285 of file otbMultiImageFileWriter.h.

◆ SizeType

typedef ImageBaseType::SizeType otb::MultiImageFileWriter::SizeType

Definition at line 65 of file otbMultiImageFileWriter.h.

◆ SizeValueType

typedef ImageBaseType::SizeValueType otb::MultiImageFileWriter::SizeValueType

Definition at line 66 of file otbMultiImageFileWriter.h.

◆ StreamingManagerType

typedef StreamingManager<FakeOutputType> otb::MultiImageFileWriter::StreamingManagerType

private

Definition at line 197 of file otbMultiImageFileWriter.h.

◆ Superclass

typedef itk::ProcessObject otb::MultiImageFileWriter::Superclass

Definition at line 52 of file otbMultiImageFileWriter.h.

Constructor & Destructor Documentation

◆ MultiImageFileWriter()

otb::MultiImageFileWriter::MultiImageFileWriter ( )

protected

◆ ~MultiImageFileWriter()

virtual otb::MultiImageFileWriter::~MultiImageFileWriter ( )

inlineprotectedvirtual

Definition at line 148 of file otbMultiImageFileWriter.h.

Member Function Documentation

◆ AddInputImage()

template<class TImage >

void otb::MultiImageFileWriter::AddInputImage	(	const TImage *	inputPtr,
		const std::string &	fileName
	)

Connect a new input to the multi-writer. Only the input pointer is required. If the filename list is empty, streaming will occur without writing. If the filename list contains more than one element, then the output will be divided into this number of granule files. The resolution factor specifies the ratio between the height of this image and the height of a reference image. The number of lines per strip class parameter will be modified according to this factor, so that images with different resolutions can be streamed together. For example, use 1.0 for a 10m pixels image, 0.5 for a 20m pixels image, and specify the number of lines per strip according to the 10m pixels image. You may specify top and bottom margins that will be removed from the input image, according to its largest possible region.

Definition at line 240 of file otbMultiImageFileWriter.hxx.

References m_SinkList.

◆ AddInputWriter()

template<class TWriter >

void otb::MultiImageFileWriter::AddInputWriter ( typename TWriter::Pointer writer )

Add a new ImageFileWriter to the multi-writer. This is an alternative method when you already have an instantiated writer.

Parse streaming modes

Definition at line 108 of file otbMultiImageFileWriter.hxx.

References m_SinkList, m_StreamingManager, otbLogMacro, SetAutomaticAdaptativeStreaming(), SetAutomaticStrippedStreaming(), SetAutomaticTiledStreaming(), SetNumberOfDivisionsStrippedStreaming(), SetNumberOfDivisionsTiledStreaming(), SetNumberOfLinesStrippedStreaming(), and SetTileDimensionTiledStreaming().

◆ CreateAnother()

virtual::itk::LightObject::Pointer otb::MultiImageFileWriter::CreateAnother ( void ) const

◆ GenerateData()

virtual void otb::MultiImageFileWriter::GenerateData ( void )

overrideprotectedvirtual

GenerateData calls the Write method for each connected input

◆ GenerateInputRequestedRegion()

virtual void otb::MultiImageFileWriter::GenerateInputRequestedRegion ( )

overrideprotectedvirtual

GenerateInputRequestedRegion can predict approximate input regions based on the requested region of the fake output. Only useful for pipeline memory print estimation

◆ GetNameOfClass()

virtual const char* otb::MultiImageFileWriter::GetNameOfClass ( ) const

virtual

◆ GetStreamRegion()

virtual RegionType otb::MultiImageFileWriter::GetStreamRegion ( int inputIndex )

protectedvirtual

Returns the current stream region of the given input

◆ InitializeStreaming()

virtual void otb::MultiImageFileWriter::InitializeStreaming ( )

protectedvirtual

Computes the number of divisions

◆ New()

static Pointer otb::MultiImageFileWriter::New ( )

static

◆ ObserveSourceFilterProgress()

void otb::MultiImageFileWriter::ObserveSourceFilterProgress	(	itk::Object *	object,
		const itk::EventObject &	event
	)

inlineprotected

Definition at line 174 of file otbMultiImageFileWriter.h.

◆ operator=()

void otb::MultiImageFileWriter::operator= ( const MultiImageFileWriter & )

protecteddelete

◆ ResetAllRequestedRegions()

void otb::MultiImageFileWriter::ResetAllRequestedRegions ( ImageBaseType * imagePtr )

protected

Goes up the pipeline starting at imagePtr, resetting all requested regions to a null region. This may be useful when mixing inputs of different resolutions.

◆ SetAutomaticAdaptativeStreaming()

void otb::MultiImageFileWriter::SetAutomaticAdaptativeStreaming	(	unsigned int	availableRAM = `0`,
		double	bias = `1.0`
	)

Set the streaming mode to 'adaptative' and configure the number of MB available. The actual number of divisions is computed automatically by estimating the memory consumption of the pipeline. Tiles will try to match the input file tile scheme. Setting the availableRAM parameter to 0 means that the available RAM is set from the CMake configuration option

Referenced by AddInputWriter().

◆ SetAutomaticStrippedStreaming()

void otb::MultiImageFileWriter::SetAutomaticStrippedStreaming	(	unsigned int	availableRAM = `0`,
		double	bias = `1.0`
	)

Set the streaming mode to 'stripped' and configure the number of MB available. The actual number of divisions is computed automatically by estimating the memory consumption of the pipeline. Setting the availableRAM parameter to 0 means that the available RAM is set from the CMake configuration option. The bias parameter is a multiplier applied on the estimated memory size of the pipeline and can be used to fine tune the potential gap between estimated memory and actual memory used, which can happen because of composite filters for example

Referenced by AddInputWriter().

◆ SetAutomaticTiledStreaming()

void otb::MultiImageFileWriter::SetAutomaticTiledStreaming	(	unsigned int	availableRAM = `0`,
		double	bias = `1.0`
	)

Set the streaming mode to 'tiled' and configure the number of MB available. The actual number of divisions is computed automatically by estimating the memory consumption of the pipeline. Tiles will be square. Setting the availableRAM parameter to 0 means that the available RAM is set from the CMake configuration option The bias parameter is a multiplier applied on the estimated memory size of the pipeline and can be used to fine tune the potential gap between estimated memory and actual memory used, which can happen because of composite filters for example

Referenced by AddInputWriter().

◆ SetNumberOfDivisionsStrippedStreaming()

void otb::MultiImageFileWriter::SetNumberOfDivisionsStrippedStreaming ( unsigned int nbDivisions )

Set the streaming mode to 'stripped' and configure the number of strips which will be used to stream the image

Referenced by AddInputWriter().

◆ SetNumberOfDivisionsTiledStreaming()

void otb::MultiImageFileWriter::SetNumberOfDivisionsTiledStreaming ( unsigned int nbDivisions )

Set the streaming mode to 'tiled' and configure the number of tiles which will be used to stream the image

Referenced by AddInputWriter().

◆ SetNumberOfLinesStrippedStreaming()

void otb::MultiImageFileWriter::SetNumberOfLinesStrippedStreaming ( unsigned int nbLinesPerStrip )

Set the streaming mode to 'stripped' and configure the number of strips which will be used to stream the image with respect to a number of line per strip

Referenced by AddInputWriter().

◆ SetTileDimensionTiledStreaming()

void otb::MultiImageFileWriter::SetTileDimensionTiledStreaming ( unsigned int tileDimension )

Set the streaming mode to 'tiled' and configure the dimension of the tiles in pixels for each dimension (square tiles will be generated)

Referenced by AddInputWriter().

◆ Update()

virtual void otb::MultiImageFileWriter::Update ( )

inlineoverridevirtual

Definition at line 140 of file otbMultiImageFileWriter.h.

◆ UpdateFilterProgress()

void otb::MultiImageFileWriter::UpdateFilterProgress ( )

inlineprotected

Definition at line 190 of file otbMultiImageFileWriter.h.

◆ UpdateOutputData()

virtual void otb::MultiImageFileWriter::UpdateOutputData ( itk::DataObject * )

overridevirtual

◆ UpdateOutputInformation()

virtual void otb::MultiImageFileWriter::UpdateOutputInformation ( )

overridevirtual

Member Data Documentation

◆ m_CurrentDivision

unsigned int otb::MultiImageFileWriter::m_CurrentDivision

private

Definition at line 203 of file otbMultiImageFileWriter.h.

◆ m_DivisionProgress

float otb::MultiImageFileWriter::m_DivisionProgress

private

Definition at line 204 of file otbMultiImageFileWriter.h.

◆ m_IsObserving

bool otb::MultiImageFileWriter::m_IsObserving

private

Definition at line 206 of file otbMultiImageFileWriter.h.

◆ m_NumberOfDivisions

unsigned int otb::MultiImageFileWriter::m_NumberOfDivisions

private

Definition at line 202 of file otbMultiImageFileWriter.h.

◆ m_ObserverID

unsigned long otb::MultiImageFileWriter::m_ObserverID

private

Definition at line 207 of file otbMultiImageFileWriter.h.

◆ m_SinkList

SinkListType otb::MultiImageFileWriter::m_SinkList

private

Definition at line 286 of file otbMultiImageFileWriter.h.

Referenced by AddInputImage(), and AddInputWriter().

◆ m_StreamingManager

StreamingManagerType::Pointer otb::MultiImageFileWriter::m_StreamingManager

private

Streaming manager used for the N inputs

Definition at line 199 of file otbMultiImageFileWriter.h.

Referenced by AddInputWriter().

◆ m_StreamRegionList

std::vector<RegionType> otb::MultiImageFileWriter::m_StreamRegionList

private

Definition at line 288 of file otbMultiImageFileWriter.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ConstPointer

◆ FakeOutputType

◆ ImageBaseType

◆ IndexType

◆ IndexValueType

◆ Pointer

◆ RegionType

◆ Self

◆ SinkListType

◆ SizeType

◆ SizeValueType

◆ StreamingManagerType

◆ Superclass

Constructor & Destructor Documentation

◆ MultiImageFileWriter()

◆ ~MultiImageFileWriter()

Member Function Documentation

◆ AddInputImage()

◆ AddInputWriter()

◆ CreateAnother()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GetNameOfClass()

◆ GetStreamRegion()

◆ InitializeStreaming()

◆ New()

◆ ObserveSourceFilterProgress()

◆ operator=()

◆ ResetAllRequestedRegions()

◆ SetAutomaticAdaptativeStreaming()

◆ SetAutomaticStrippedStreaming()

◆ SetAutomaticTiledStreaming()

◆ SetNumberOfDivisionsStrippedStreaming()

◆ SetNumberOfDivisionsTiledStreaming()

◆ SetNumberOfLinesStrippedStreaming()

◆ SetTileDimensionTiledStreaming()

◆ Update()

◆ UpdateFilterProgress()

◆ UpdateOutputData()

◆ UpdateOutputInformation()

Member Data Documentation

◆ m_CurrentDivision

◆ m_DivisionProgress

◆ m_IsObserving

◆ m_NumberOfDivisions

◆ m_ObserverID

◆ m_SinkList

◆ m_StreamingManager

◆ m_StreamRegionList
