otb::PersistentImageToOGRLayerFilter< TImage > Class Template Reference

#include <otbPersistentImageToOGRLayerFilter.h>

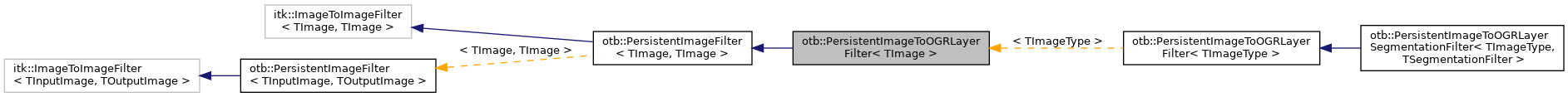

Inheritance diagram for otb::PersistentImageToOGRLayerFilter< TImage >:

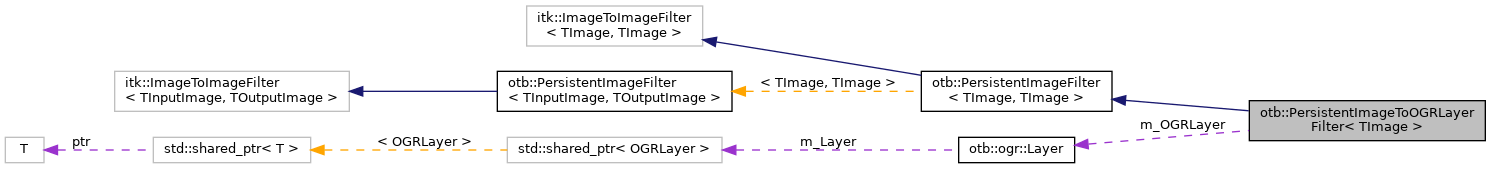

Collaboration diagram for otb::PersistentImageToOGRLayerFilter< TImage >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef InputImageType::IndexType	IndexType
typedef InputImageType::Pointer	InputImagePointer
typedef TImage	InputImageType
typedef InputImageType::InternalPixelType	InternalPixelType
typedef OGRDataSourceType::Pointer	OGRDataSourcePointerType
typedef ogr::DataSource	OGRDataSourceType
typedef ogr::Feature	OGRFeatureType
typedef ogr::Layer	OGRLayerType
typedef InputImageType::PixelType	PixelType
typedef itk::SmartPointer< Self >	Pointer
typedef InputImageType::RegionType	RegionType
typedef PersistentImageToOGRLayerFilter	Self
typedef InputImageType::SizeType	SizeType
typedef PersistentImageFilter< TImage, TImage >	Superclass
Public Types inherited from otb::PersistentImageFilter< TImage, TImage >
typedef itk::SmartPointer< const Self >	ConstPointer
typedef TImage	InputImageType
typedef TImage	OutputImageType
typedef itk::SmartPointer< Self >	Pointer
typedef PersistentImageFilter	Self
typedef itk::ImageToImageFilter< TImage, TImage >	Superclass

Public Member Functions
void	AllocateOutputs () override
virtual const char *	GetNameOfClass () const
const OGRLayerType &	GetOGRLayer (void) const
virtual SizeType	GetStreamSize ()
virtual void	Initialize (void)
void	Reset (void) override
void	SetOGRLayer (const OGRLayerType &ogrLayer)
void	Synthetize (void) override
Public Member Functions inherited from otb::PersistentImageFilter< TImage, TImage >
virtual const char *	GetNameOfClass () const

Protected Member Functions
void	GenerateData () override
	PersistentImageToOGRLayerFilter ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~PersistentImageToOGRLayerFilter () override
Protected Member Functions inherited from otb::PersistentImageFilter< TImage, TImage >
	PersistentImageFilter ()
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~PersistentImageFilter () override

Private Member Functions
void	operator= (const Self &)=delete
	PersistentImageToOGRLayerFilter (const Self &)=delete
virtual OGRDataSourcePointerType	ProcessTile ()=0

Private Attributes
OGRLayerType	m_OGRLayer
SizeType	m_StreamSize

Detailed Description

template<class TImage>
class otb::PersistentImageToOGRLayerFilter< TImage >

Perform vectorization in a persistent way.

This filter is a generic filter. It is the base class of the Large scale segmentation framework. The ProcessTile() method is pure virtual and is implemented in sub class (

See also

PersistentStreamingLabelImageToOGRDataFilter). It returns a "memory" DataSource. This filter only copy each feature of the layer in the "memory" DataSource into the input OGRLayer set by SetOGRLayer() method.

PersistentImageFilter

Definition at line 51 of file otbPersistentImageToOGRLayerFilter.h.

Member Typedef Documentation

ConstPointer

template<class TImage >

typedef itk::SmartPointer<const Self> otb::PersistentImageToOGRLayerFilter< TImage >::ConstPointer

Definition at line 58 of file otbPersistentImageToOGRLayerFilter.h.

IndexType

template<class TImage >

typedef InputImageType::IndexType otb::PersistentImageToOGRLayerFilter< TImage >::IndexType

Definition at line 67 of file otbPersistentImageToOGRLayerFilter.h.

InputImagePointer

template<class TImage >

typedef InputImageType::Pointer otb::PersistentImageToOGRLayerFilter< TImage >::InputImagePointer

Definition at line 64 of file otbPersistentImageToOGRLayerFilter.h.

InputImageType

template<class TImage >

typedef TImage otb::PersistentImageToOGRLayerFilter< TImage >::InputImageType

Definition at line 61 of file otbPersistentImageToOGRLayerFilter.h.

InternalPixelType

template<class TImage >

typedef InputImageType::InternalPixelType otb::PersistentImageToOGRLayerFilter< TImage >::InternalPixelType

Definition at line 69 of file otbPersistentImageToOGRLayerFilter.h.

OGRDataSourcePointerType

template<class TImage >

typedef OGRDataSourceType::Pointer otb::PersistentImageToOGRLayerFilter< TImage >::OGRDataSourcePointerType

Definition at line 72 of file otbPersistentImageToOGRLayerFilter.h.

OGRDataSourceType

template<class TImage >

typedef ogr::DataSource otb::PersistentImageToOGRLayerFilter< TImage >::OGRDataSourceType

Definition at line 71 of file otbPersistentImageToOGRLayerFilter.h.

OGRFeatureType

template<class TImage >

typedef ogr::Feature otb::PersistentImageToOGRLayerFilter< TImage >::OGRFeatureType

Definition at line 74 of file otbPersistentImageToOGRLayerFilter.h.

OGRLayerType

template<class TImage >

typedef ogr::Layer otb::PersistentImageToOGRLayerFilter< TImage >::OGRLayerType

Definition at line 73 of file otbPersistentImageToOGRLayerFilter.h.

PixelType

template<class TImage >

typedef InputImageType::PixelType otb::PersistentImageToOGRLayerFilter< TImage >::PixelType

Definition at line 68 of file otbPersistentImageToOGRLayerFilter.h.

Pointer

template<class TImage >

typedef itk::SmartPointer<Self> otb::PersistentImageToOGRLayerFilter< TImage >::Pointer

Definition at line 57 of file otbPersistentImageToOGRLayerFilter.h.

RegionType

template<class TImage >

typedef InputImageType::RegionType otb::PersistentImageToOGRLayerFilter< TImage >::RegionType

Definition at line 65 of file otbPersistentImageToOGRLayerFilter.h.

Self

template<class TImage >

typedef PersistentImageToOGRLayerFilter otb::PersistentImageToOGRLayerFilter< TImage >::Self

Standard Self typedef

Definition at line 55 of file otbPersistentImageToOGRLayerFilter.h.

SizeType

template<class TImage >

typedef InputImageType::SizeType otb::PersistentImageToOGRLayerFilter< TImage >::SizeType

Definition at line 66 of file otbPersistentImageToOGRLayerFilter.h.

Superclass

template<class TImage >

typedef PersistentImageFilter<TImage, TImage> otb::PersistentImageToOGRLayerFilter< TImage >::Superclass

Definition at line 56 of file otbPersistentImageToOGRLayerFilter.h.

Constructor & Destructor Documentation

PersistentImageToOGRLayerFilter() [1/2]

template<class TImage >

otb::PersistentImageToOGRLayerFilter< TImage >::PersistentImageToOGRLayerFilter

protected

Definition at line 35 of file otbPersistentImageToOGRLayerFilter.hxx.

~PersistentImageToOGRLayerFilter()

template<class TImage >

otb::PersistentImageToOGRLayerFilter< TImage >::~PersistentImageToOGRLayerFilter

overrideprotected

Definition at line 41 of file otbPersistentImageToOGRLayerFilter.hxx.

PersistentImageToOGRLayerFilter() [2/2]

template<class TImage >

otb::PersistentImageToOGRLayerFilter< TImage >::PersistentImageToOGRLayerFilter ( const Self &  )

privatedelete

Member Function Documentation

AllocateOutputs()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::AllocateOutputs

override

Definition at line 59 of file otbPersistentImageToOGRLayerFilter.hxx.

GenerateData()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::GenerateData

overrideprotected

Definition at line 112 of file otbPersistentImageToOGRLayerFilter.hxx.

GetNameOfClass()

template<class TImage >

virtual const char* otb::PersistentImageToOGRLayerFilter< TImage >::GetNameOfClass ( ) const

virtual

Runtime information support.

GetOGRLayer()

template<class TImage >

const PersistentImageToOGRLayerFilter< TImage >::OGRLayerType & otb::PersistentImageToOGRLayerFilter< TImage >::GetOGRLayer

(

void

)

const

Get the ogr::Layer output.

Definition at line 53 of file otbPersistentImageToOGRLayerFilter.hxx.

GetStreamSize()

template<class TImage >

virtual SizeType otb::PersistentImageToOGRLayerFilter< TImage >::GetStreamSize ( )

virtual

Get the size of the tile used for streaming. This is useful if you use for example the OGRFusionTileFilter for fusioning streaming tiles.

Initialize()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::Initialize ( void  )

virtual

This method creates the output layer in the OGRLayer set by the user.

Note

This method must be called before the call of Update .

Definition at line 75 of file otbPersistentImageToOGRLayerFilter.hxx.

operator=()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::operator= ( const Self &  )

privatedelete

PrintSelf()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::PrintSelf ( std::ostream &  os, itk::Indent  indent  ) const

overrideprotected

Definition at line 164 of file otbPersistentImageToOGRLayerFilter.hxx.

ProcessTile()

template<class TImage >

virtual OGRDataSourcePointerType otb::PersistentImageToOGRLayerFilter< TImage >::ProcessTile ( )

privatepure virtual

Implemented in otb::PersistentImageToOGRLayerSegmentationFilter< TImageType, TSegmentationFilter >.

Reset()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::Reset ( void  )

overridevirtual

Reset the persistent data of the filter.

Implements otb::PersistentImageFilter< TImage, TImage >.

Definition at line 65 of file otbPersistentImageToOGRLayerFilter.hxx.

SetOGRLayer()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::SetOGRLayer

(

const OGRLayerType &

ogrLayer

)

Set the ogr::Layer in which the geometries will be dumped

Definition at line 46 of file otbPersistentImageToOGRLayerFilter.hxx.

Synthetize()

template<class TImage >

void otb::PersistentImageToOGRLayerFilter< TImage >::Synthetize ( void  )

overridevirtual

Synthesize the persistent data of the filter.

Implements otb::PersistentImageFilter< TImage, TImage >.

Definition at line 70 of file otbPersistentImageToOGRLayerFilter.hxx.

Member Data Documentation

m_OGRLayer

template<class TImage >

OGRLayerType otb::PersistentImageToOGRLayerFilter< TImage >::m_OGRLayer

private

Definition at line 113 of file otbPersistentImageToOGRLayerFilter.h.

m_StreamSize

template<class TImage >

SizeType otb::PersistentImageToOGRLayerFilter< TImage >::m_StreamSize

private

Definition at line 115 of file otbPersistentImageToOGRLayerFilter.h.

---

The documentation for this class was generated from the following files:

• otbPersistentImageToOGRLayerFilter.h
• otbPersistentImageToOGRLayerFilter.hxx
