#include <otbPersistentSamplingFilterBase.h>

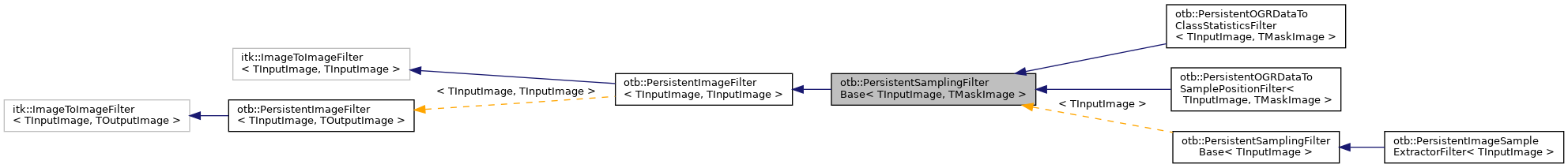

Inheritance diagram for otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >:

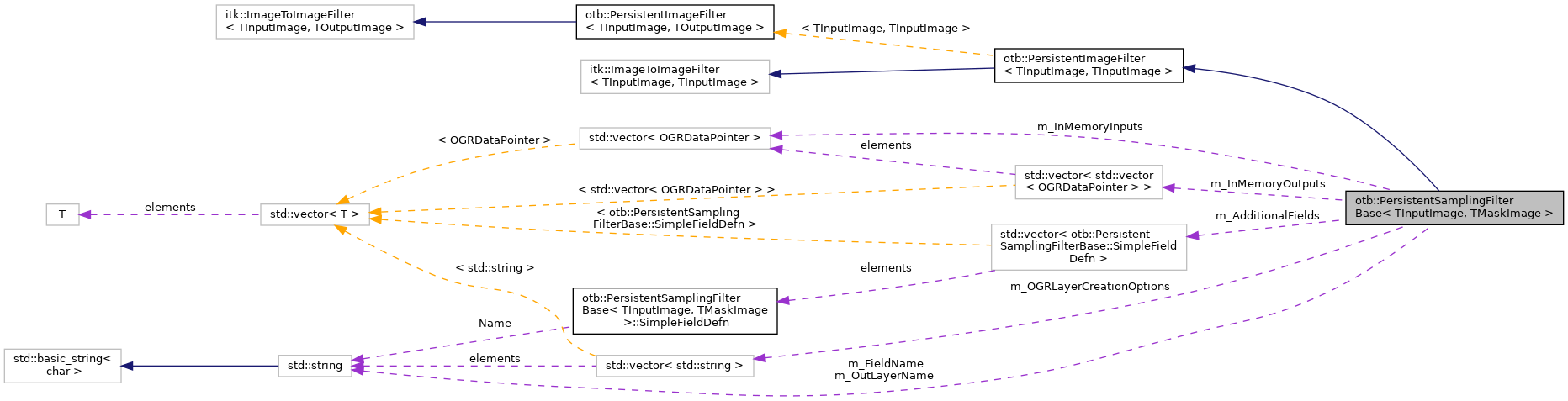

Collaboration diagram for otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >:

Classes
struct	SimpleFieldDefn

struct	VectorThreadStruct

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer

typedef TInputImage	InputImageType

typedef TMaskImage	MaskImageType

typedef ogr::DataSource::Pointer	OGRDataPointer

typedef itk::SmartPointer< Self >	Pointer

typedef TInputImage::RegionType	RegionType

typedef PersistentSamplingFilterBase	Self

typedef PersistentImageFilter< TInputImage, TInputImage >	Superclass

Public Types inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
typedef itk::SmartPointer< const Self >	ConstPointer

typedef TInputImage	InputImageType

typedef TInputImage	OutputImageType

typedef itk::SmartPointer< Self >	Pointer

typedef PersistentImageFilter	Self

typedef itk::ImageToImageFilter< TInputImage, TInputImage >	Superclass

Public Member Functions
const TMaskImage *	GetMask ()

virtual const char *	GetNameOfClass () const

const ogr::DataSource *	GetOGRData ()

const std::vector< std::string > &	GetOGRLayerCreationOptions ()

void	SetMask (const TMaskImage *mask)

void	SetOGRData (const ogr::DataSource *vector)

void	SetOGRLayerCreationOptions (const std::vector< std::string > &options)

Public Member Functions inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
virtual const char *	GetNameOfClass () const

virtual void	Reset (void)=0

virtual void	Synthetize (void)=0

std::string	m_FieldName

int	m_FieldIndex

int	m_LayerIndex

std::string	m_OutLayerName

std::vector< std::string >	m_OGRLayerCreationOptions

std::vector< SimpleFieldDefn >	m_AdditionalFields

std::vector< OGRDataPointer >	m_InMemoryInputs

std::vector< std::vector< OGRDataPointer > >	m_InMemoryOutputs

virtual void	SetFieldName (std::string _arg)

virtual std::string	GetFieldName ()

virtual int	GetFieldIndex ()

virtual void	SetLayerIndex (int _arg)

virtual int	GetLayerIndex ()

virtual void	SetOutLayerName (std::string _arg)

virtual std::string	GetOutLayerName ()

	PersistentSamplingFilterBase ()

	~PersistentSamplingFilterBase () override

void	GenerateOutputInformation () override

void	GenerateInputRequestedRegion () override

void	GenerateData (void) override

void	AllocateOutputs (void) override

virtual void	ThreadedGenerateVectorData (const ogr::Layer &layerForThread, itk::ThreadIdType threadid)

void	ExploreGeometry (const ogr::Feature &feature, OGRGeometry *geom, RegionType &region, itk::ThreadIdType &threadid)

virtual void	ProcessLine (const ogr::Feature &feature, OGRLineString *line, RegionType &region, itk::ThreadIdType &threadid)

virtual void	ProcessPolygon (const ogr::Feature &feature, OGRPolygon *polygon, RegionType &region, itk::ThreadIdType &threadid)

virtual void	ProcessSample (const ogr::Feature &feature, typename TInputImage::IndexType &imgIndex, typename TInputImage::PointType &imgPoint, itk::ThreadIdType &threadid)

virtual void	PrepareFeature (const ogr::Feature &feature, itk::ThreadIdType &threadid)

bool	IsSampleInsidePolygon (OGRPolygon poly, OGRPoint tmpPoint)

bool	IsSampleOnLine (OGRLineString *line, typename TInputImage::PointType &position, typename TInputImage::SpacingType &absSpacing, OGRPolygon &tmpPolygon)

RegionType	FeatureBoundingRegion (const TInputImage *image, otb::ogr::Layer::const_iterator &featIt) const

virtual void	DispatchInputVectors (void)

virtual void	GatherOutputVectors (void)

virtual void	FillOneOutput (unsigned int outIdx, ogr::DataSource *outDS, bool update)

virtual void	InitializeOutputDataSource (ogr::DataSource inputDS, ogr::DataSource outputDS)

void	ClearAdditionalFields ()

void	CreateAdditionalField (std::string name, OGRFieldType type, int width=0, int precision=0)

const std::vector< SimpleFieldDefn > &	GetAdditionalFields ()

ogr::Layer	GetInMemoryInput (unsigned int threadId)

ogr::Layer	GetInMemoryOutput (unsigned int threadId, unsigned int index=0)

static ITK_THREAD_RETURN_TYPE	VectorThreaderCallback (void *arg)

	PersistentSamplingFilterBase (const Self &)=delete

void	operator= (const Self &)=delete

Additional Inherited Members
Protected Member Functions inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
	PersistentImageFilter ()

void	PrintSelf (std::ostream &os, itk::Indent indent) const override

	~PersistentImageFilter () override

Detailed Description

template<class TInputImage, class TMaskImage = otb::Image<unsigned char, 2>>
class otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >

Base class for persistent filter doing sampling tasks.

Note: This class contains pure virtual method, and can not be instantiated.

See also: PersistentOGRDataToClassStatisticsFilter; PersistentOGRDataToSamplePositionFilter

Definition at line 42 of file otbPersistentSamplingFilterBase.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef itk::SmartPointer<const Self> otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ConstPointer

Definition at line 49 of file otbPersistentSamplingFilterBase.h.

◆ InputImageType

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef TInputImage otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::InputImageType

Template parameters typedefs

Definition at line 52 of file otbPersistentSamplingFilterBase.h.

◆ MaskImageType

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef TMaskImage otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::MaskImageType

Definition at line 56 of file otbPersistentSamplingFilterBase.h.

◆ OGRDataPointer

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef ogr::DataSource::Pointer otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::OGRDataPointer

Definition at line 60 of file otbPersistentSamplingFilterBase.h.

◆ Pointer

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef itk::SmartPointer<Self> otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::Pointer

Definition at line 48 of file otbPersistentSamplingFilterBase.h.

◆ RegionType

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef TInputImage::RegionType otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::RegionType

Definition at line 58 of file otbPersistentSamplingFilterBase.h.

◆ Self

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef PersistentSamplingFilterBase otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::Self

Standard typedefs

Definition at line 46 of file otbPersistentSamplingFilterBase.h.

◆ Superclass

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

typedef PersistentImageFilter<TInputImage, TInputImage> otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::Superclass

Definition at line 47 of file otbPersistentSamplingFilterBase.h.

Constructor & Destructor Documentation

◆ PersistentSamplingFilterBase() [1/2]

template<class TInputImage , class TMaskImage >

otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::PersistentSamplingFilterBase

protected

Constructor

Definition at line 36 of file otbPersistentSamplingFilterBase.hxx.

◆ ~PersistentSamplingFilterBase()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::~PersistentSamplingFilterBase ( )

inlineoverrideprotected

Destructor

Definition at line 104 of file otbPersistentSamplingFilterBase.h.

◆ PersistentSamplingFilterBase() [2/2]

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::PersistentSamplingFilterBase ( const Self & )

privatedelete

Field name containing the class name

Member Function Documentation

◆ AllocateOutputs()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::AllocateOutputs ( void )

overrideprotected

Allocate in-memory layers for input and outputs

Definition at line 177 of file otbPersistentSamplingFilterBase.hxx.

◆ ClearAdditionalFields()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ClearAdditionalFields

protected

Clear current additional fields

Definition at line 757 of file otbPersistentSamplingFilterBase.hxx.

◆ CreateAdditionalField()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::CreateAdditionalField	(	std::string	name,
		OGRFieldType	type,
		int	width = `0`,
		int	precision = `0`
	)

protected

Create a new additional field

Definition at line 763 of file otbPersistentSamplingFilterBase.hxx.

◆ DispatchInputVectors()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::DispatchInputVectors ( void )

protectedvirtual

Method to split the input OGRDataSource between several containers for each thread. Default is to put the same number of features for each thread.

Reimplemented in otb::PersistentOGRDataToSamplePositionFilter< TInputImage, TMaskImage, TSampler >.

Definition at line 619 of file otbPersistentSamplingFilterBase.hxx.

◆ ExploreGeometry()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ExploreGeometry	(	const ogr::Feature &	feature,
		OGRGeometry *	geom,
		RegionType &	region,
		itk::ThreadIdType &	threadid
	)

protected

Process a geometry, recursive method when the geometry is a collection

Definition at line 348 of file otbPersistentSamplingFilterBase.hxx.

◆ FeatureBoundingRegion()

template<class TInputImage , class TMaskImage >

PersistentSamplingFilterBase< TInputImage, TMaskImage >::RegionType otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::FeatureBoundingRegion	(	const TInputImage *	image,
		otb::ogr::Layer::const_iterator &	featIt
	)		const

protected

Get the region bounding a set of features

Definition at line 580 of file otbPersistentSamplingFilterBase.hxx.

◆ FillOneOutput()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::FillOneOutput	(	unsigned int	outIdx,
		ogr::DataSource *	outDS,
		bool	update
	)

protectedvirtual

Fill output vectors for a particular output

Reimplemented in otb::PersistentOGRDataToSamplePositionFilter< TInputImage, TMaskImage, TSampler >.

Definition at line 272 of file otbPersistentSamplingFilterBase.hxx.

◆ GatherOutputVectors()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GatherOutputVectors ( void )

protectedvirtual

Gather the content of in-memory output layer into the filter outputs

Definition at line 247 of file otbPersistentSamplingFilterBase.hxx.

◆ GenerateData()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GenerateData ( void )

overrideprotected

Generate data should thread over

Definition at line 149 of file otbPersistentSamplingFilterBase.hxx.

◆ GenerateInputRequestedRegion()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GenerateInputRequestedRegion

overrideprotected

Use an empty region to input image (pixel values not needed) and set the requested region for the mask

Definition at line 130 of file otbPersistentSamplingFilterBase.hxx.

◆ GenerateOutputInformation()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GenerateOutputInformation

overrideprotected

Use the same output information as input image, check the field index and the mask footprint

Definition at line 96 of file otbPersistentSamplingFilterBase.hxx.

◆ GetAdditionalFields()

template<class TInputImage , class TMaskImage >

const std::vector< typename PersistentSamplingFilterBase< TInputImage, TMaskImage >::SimpleFieldDefn > & otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetAdditionalFields

protected

Get a reference over the additional fields

Definition at line 775 of file otbPersistentSamplingFilterBase.hxx.

◆ GetFieldIndex()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual int otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetFieldIndex ( )

virtual

Get macro for the field index (deduced from the field name)

◆ GetFieldName()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual std::string otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetFieldName ( )

virtual

Field name containing the class name

◆ GetInMemoryInput()

template<class TInputImage , class TMaskImage >

ogr::Layer otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetInMemoryInput ( unsigned int threadId )

protected

Give access to in-memory input layers

Definition at line 799 of file otbPersistentSamplingFilterBase.hxx.

◆ GetInMemoryOutput()

template<class TInputImage , class TMaskImage >

ogr::Layer otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetInMemoryOutput	(	unsigned int	threadId,
		unsigned int	index = `0`
	)

protected

Give access to in-memory output layers

Definition at line 809 of file otbPersistentSamplingFilterBase.hxx.

◆ GetLayerIndex()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual int otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetLayerIndex ( )

virtual

Field name containing the class name

◆ GetMask()

template<class TInputImage , class TMaskImage >

const TMaskImage * otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetMask

Get the input mask (may be null)

Definition at line 73 of file otbPersistentSamplingFilterBase.hxx.

◆ GetNameOfClass()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual const char* otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetNameOfClass ( ) const

virtual

Creation through object factory macro

Reimplemented in otb::PersistentOGRDataToSamplePositionFilter< TInputImage, TMaskImage, TSampler >, and otb::PersistentOGRDataToClassStatisticsFilter< TInputImage, TMaskImage >.

◆ GetOGRData()

template<class TInputImage , class TMaskImage >

const otb::ogr::DataSource * otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetOGRData

Get the input OGRDataSource with sampling regions

Definition at line 57 of file otbPersistentSamplingFilterBase.hxx.

◆ GetOGRLayerCreationOptions()

template<class TInputImage , class TMaskImage >

const std::vector< std::string > & otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetOGRLayerCreationOptions

Get the OGR layer creation options

Definition at line 90 of file otbPersistentSamplingFilterBase.hxx.

◆ GetOutLayerName()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual std::string otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::GetOutLayerName ( )

virtual

Field name containing the class name

◆ InitializeOutputDataSource()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::InitializeOutputDataSource	(	ogr::DataSource *	inputDS,
		ogr::DataSource *	outputDS
	)

protectedvirtual

Utility method to add new fields on an output layer

Definition at line 682 of file otbPersistentSamplingFilterBase.hxx.

◆ IsSampleInsidePolygon()

template<class TInputImage , class TMaskImage >

bool otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::IsSampleInsidePolygon	(	OGRPolygon *	poly,
		OGRPoint *	tmpPoint
	)

inlineprotected

Common function to test if a point is inside a polygon

Definition at line 549 of file otbPersistentSamplingFilterBase.hxx.

◆ IsSampleOnLine()

template<class TInputImage , class TMaskImage >

bool otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::IsSampleOnLine	(	OGRLineString *	line,
		typename TInputImage::PointType &	position,
		typename TInputImage::SpacingType &	absSpacing,
		OGRPolygon &	tmpPolygon
	)

inlineprotected

Common function to test if a pixel crosses the line

Definition at line 567 of file otbPersistentSamplingFilterBase.hxx.

◆ operator=()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::operator= ( const Self & )

privatedelete

Field name containing the class name

◆ PrepareFeature()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::PrepareFeature	(	const ogr::Feature &	feature,
		itk::ThreadIdType &	threadid
	)

protectedvirtual

Generic method called once before processing each feature

Reimplemented in otb::PersistentOGRDataToClassStatisticsFilter< TInputImage, TMaskImage >.

Definition at line 543 of file otbPersistentSamplingFilterBase.hxx.

◆ ProcessLine()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ProcessLine	(	const ogr::Feature &	feature,
		OGRLineString *	line,
		RegionType &	region,
		itk::ThreadIdType &	threadid
	)

protectedvirtual

Process a line string : use pixels that cross the line

Definition at line 426 of file otbPersistentSamplingFilterBase.hxx.

◆ ProcessPolygon()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ProcessPolygon	(	const ogr::Feature &	feature,
		OGRPolygon *	polygon,
		RegionType &	region,
		itk::ThreadIdType &	threadid
	)

protectedvirtual

Process a polygon : use pixels inside the polygon

Definition at line 485 of file otbPersistentSamplingFilterBase.hxx.

◆ ProcessSample()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ProcessSample	(	const ogr::Feature &	feature,
		typename TInputImage::IndexType &	imgIndex,
		typename TInputImage::PointType &	imgPoint,
		itk::ThreadIdType &	threadid
	)

protectedvirtual

Generic method called for each matching pixel position (NOT IMPLEMENTED)

Reimplemented in otb::PersistentOGRDataToSamplePositionFilter< TInputImage, TMaskImage, TSampler >, and otb::PersistentOGRDataToClassStatisticsFilter< TInputImage, TMaskImage >.

Definition at line 536 of file otbPersistentSamplingFilterBase.hxx.

◆ SetFieldName()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::SetFieldName ( std::string _arg )

virtual

Set/Get macro for the field name containing class names in the input vectors.

◆ SetLayerIndex()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::SetLayerIndex ( int _arg )

virtual

Set/Get macro for the layer index containing the sampling areas

◆ SetMask()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::SetMask ( const TMaskImage * mask )

Set an input mask (optional)

Definition at line 67 of file otbPersistentSamplingFilterBase.hxx.

◆ SetOGRData()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::SetOGRData ( const ogr::DataSource * vector )

Set the input OGRDataSource that contains sampling areas for each class

Definition at line 51 of file otbPersistentSamplingFilterBase.hxx.

◆ SetOGRLayerCreationOptions()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::SetOGRLayerCreationOptions ( const std::vector< std::string > & options )

Set the OGR layer creation options

Definition at line 83 of file otbPersistentSamplingFilterBase.hxx.

◆ SetOutLayerName()

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

virtual void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::SetOutLayerName ( std::string _arg )

virtual

Set/Get macro for the layer name

◆ ThreadedGenerateVectorData()

template<class TInputImage , class TMaskImage >

void otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::ThreadedGenerateVectorData	(	const ogr::Layer &	layerForThread,
		itk::ThreadIdType	threadid
	)

protectedvirtual

Start of main processing loop

Reimplemented in otb::PersistentImageSampleExtractorFilter< TInputImage >.

Definition at line 321 of file otbPersistentSamplingFilterBase.hxx.

◆ VectorThreaderCallback()

template<class TInputImage , class TMaskImage >

ITK_THREAD_RETURN_TYPE otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::VectorThreaderCallback ( void * arg )

staticprotected

Callback function to launch VectorThreadedGenerateData in each thread

Definition at line 781 of file otbPersistentSamplingFilterBase.hxx.

Member Data Documentation

◆ m_AdditionalFields

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

std::vector<SimpleFieldDefn> otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_AdditionalFields

private

Additional field definitions to add in output data sources

Definition at line 216 of file otbPersistentSamplingFilterBase.h.

◆ m_FieldIndex

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

int otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_FieldIndex

private

Field index corresponding to the field name m_FieldName

Definition at line 204 of file otbPersistentSamplingFilterBase.h.

◆ m_FieldName

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

std::string otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_FieldName

private

Field name containing the class name

Definition at line 201 of file otbPersistentSamplingFilterBase.h.

◆ m_InMemoryInputs

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

std::vector<OGRDataPointer> otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_InMemoryInputs

private

In-memory containers storing input geometries for each thread

Definition at line 219 of file otbPersistentSamplingFilterBase.h.

◆ m_InMemoryOutputs

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

std::vector<std::vector<OGRDataPointer> > otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_InMemoryOutputs

private

In-memory containers storing position during iteration loop

Definition at line 222 of file otbPersistentSamplingFilterBase.h.

◆ m_LayerIndex

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

int otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_LayerIndex

private

Layer to use in the input vector file, default to 0

Definition at line 207 of file otbPersistentSamplingFilterBase.h.

◆ m_OGRLayerCreationOptions

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

std::vector<std::string> otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_OGRLayerCreationOptions

private

Creation option for output layers

Definition at line 213 of file otbPersistentSamplingFilterBase.h.

◆ m_OutLayerName

template<class TInputImage , class TMaskImage = otb::Image<unsigned char, 2>>

std::string otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >::m_OutLayerName

private

name of the output layers

Definition at line 210 of file otbPersistentSamplingFilterBase.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<class TInputImage, class TMaskImage = otb::Image<unsigned char, 2>> class otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >

Member Typedef Documentation

◆ ConstPointer

◆ InputImageType

◆ MaskImageType

◆ OGRDataPointer

◆ Pointer

◆ RegionType

◆ Self

◆ Superclass

Constructor & Destructor Documentation

◆ PersistentSamplingFilterBase() [1/2]

◆ ~PersistentSamplingFilterBase()

◆ PersistentSamplingFilterBase() [2/2]

Member Function Documentation

◆ AllocateOutputs()

◆ ClearAdditionalFields()

◆ CreateAdditionalField()

◆ DispatchInputVectors()

◆ ExploreGeometry()

◆ FeatureBoundingRegion()

◆ FillOneOutput()

◆ GatherOutputVectors()

◆ GenerateData()

◆ GenerateInputRequestedRegion()

◆ GenerateOutputInformation()

◆ GetAdditionalFields()

◆ GetFieldIndex()

◆ GetFieldName()

◆ GetInMemoryInput()

◆ GetInMemoryOutput()

◆ GetLayerIndex()

◆ GetMask()

◆ GetNameOfClass()

◆ GetOGRData()

◆ GetOGRLayerCreationOptions()

◆ GetOutLayerName()

◆ InitializeOutputDataSource()

◆ IsSampleInsidePolygon()

◆ IsSampleOnLine()

◆ operator=()

◆ PrepareFeature()

◆ ProcessLine()

◆ ProcessPolygon()

◆ ProcessSample()

◆ SetFieldName()

◆ SetLayerIndex()

◆ SetMask()

◆ SetOGRData()

◆ SetOGRLayerCreationOptions()

◆ SetOutLayerName()

◆ ThreadedGenerateVectorData()

◆ VectorThreaderCallback()

Member Data Documentation

◆ m_AdditionalFields

◆ m_FieldIndex

◆ m_FieldName

◆ m_InMemoryInputs

◆ m_InMemoryOutputs

◆ m_LayerIndex

◆ m_OGRLayerCreationOptions

◆ m_OutLayerName

template<class TInputImage, class TMaskImage = otb::Image<unsigned char, 2>>
class otb::PersistentSamplingFilterBase< TInputImage, TMaskImage >
