otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction > Class Template Reference

#include <otbUnaryFunctorNeighborhoodVectorImageFilter.h>

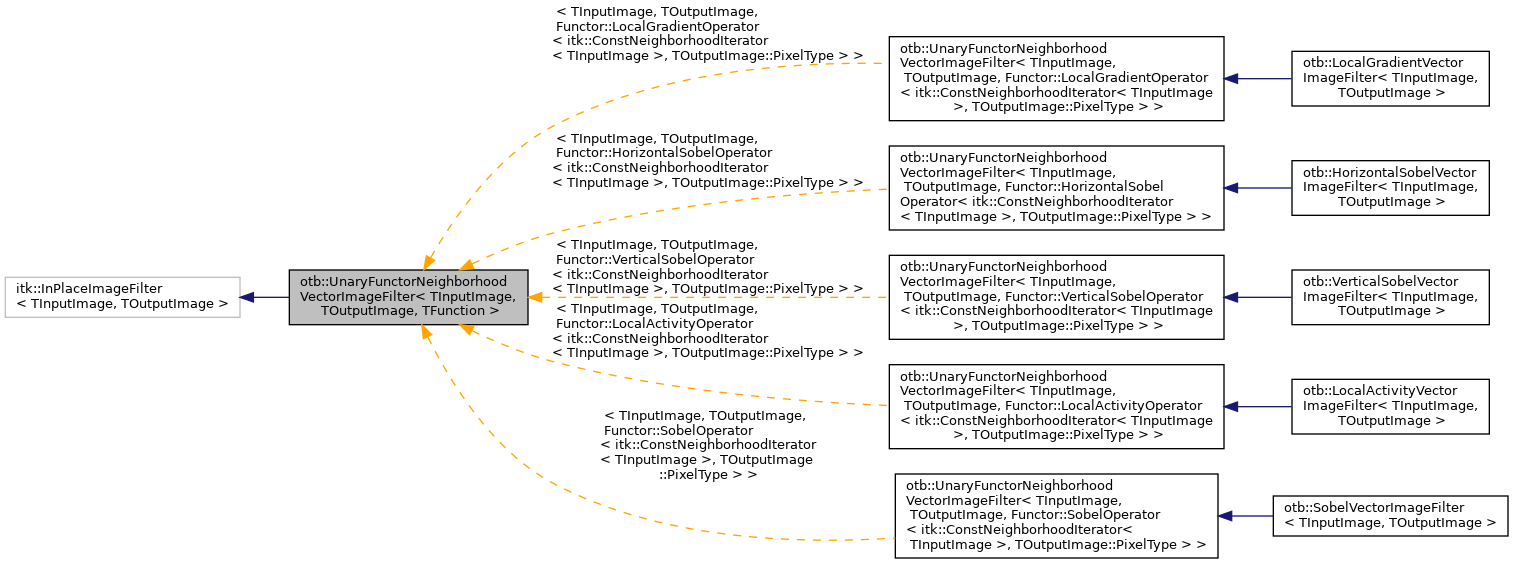

Inheritance diagram for otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >:

Collaboration diagram for otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef TFunction	FunctorType
typedef InputImageType::PixelType	InputImagePixelType
typedef InputImageType::ConstPointer	InputImagePointer
typedef InputImageType::RegionType	InputImageRegionType
typedef TInputImage	InputImageType
typedef itk::ConstNeighborhoodIterator< TInputImage >	NeighborhoodIteratorType
typedef OutputImageType::PixelType	OutputImagePixelType
typedef OutputImageType::Pointer	OutputImagePointer
typedef OutputImageType::RegionType	OutputImageRegionType
typedef TOutputImage	OutputImageType
typedef itk::SmartPointer< Self >	Pointer
typedef itk::ProcessObject	ProcessObjectType
typedef NeighborhoodIteratorType::RadiusType	RadiusType
typedef UnaryFunctorNeighborhoodVectorImageFilter	Self
typedef itk::InPlaceImageFilter< TInputImage, TOutputImage >	Superclass

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
FunctorType &	GetFunctor ()
virtual const char *	GetNameOfClass () const
void	SetFunctor (const FunctorType &functor)
virtual void	SetRadius (RadiusType _arg)
virtual RadiusType	GetRadius ()

Static Public Member Functions
static Pointer	New ()

Static Public Attributes
static const unsigned int	InputImageDimension = TInputImage::ImageDimension
static const unsigned int	OutputImageDimension = TOutputImage::ImageDimension

Protected Member Functions
void	GenerateOutputInformation (void) override
void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId) override
	~UnaryFunctorNeighborhoodVectorImageFilter () override
	UnaryFunctorNeighborhoodVectorImageFilter ()

Protected Attributes
RadiusType	m_Radius

Private Member Functions
void	operator= (const Self &)=delete
	UnaryFunctorNeighborhoodVectorImageFilter (const Self &)=delete

Private Attributes
FunctorType	m_Functor

Detailed Description

template<class TInputImage, class TOutputImage, class TFunction>
class otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >

Implements neighborhood-wise generic operation of one vector image.

This class is parameterized over the types of the input image and the type of the output image. It is also parameterized by the operation to be applied. A Functor style is used.

Definition at line 42 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

Member Typedef Documentation

ConstPointer

template<class TInputImage, class TOutputImage, class TFunction>

typedef itk::SmartPointer<const Self> otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::ConstPointer

Definition at line 49 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

FunctorType

template<class TInputImage, class TOutputImage, class TFunction>

typedef TFunction otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::FunctorType

Some convenient typedefs.

Definition at line 63 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

InputImagePixelType

template<class TInputImage, class TOutputImage, class TFunction>

typedef InputImageType::PixelType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::InputImagePixelType

Definition at line 67 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

InputImagePointer

template<class TInputImage, class TOutputImage, class TFunction>

typedef InputImageType::ConstPointer otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::InputImagePointer

Definition at line 65 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

InputImageRegionType

template<class TInputImage, class TOutputImage, class TFunction>

typedef InputImageType::RegionType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::InputImageRegionType

Definition at line 66 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

InputImageType

template<class TInputImage, class TOutputImage, class TFunction>

typedef TInputImage otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::InputImageType

Definition at line 64 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

NeighborhoodIteratorType

template<class TInputImage, class TOutputImage, class TFunction>

typedef itk::ConstNeighborhoodIterator<TInputImage> otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::NeighborhoodIteratorType

Definition at line 97 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

OutputImagePixelType

template<class TInputImage, class TOutputImage, class TFunction>

typedef OutputImageType::PixelType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::OutputImagePixelType

Definition at line 71 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

OutputImagePointer

template<class TInputImage, class TOutputImage, class TFunction>

typedef OutputImageType::Pointer otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::OutputImagePointer

Definition at line 69 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

OutputImageRegionType

template<class TInputImage, class TOutputImage, class TFunction>

typedef OutputImageType::RegionType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::OutputImageRegionType

Definition at line 70 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

OutputImageType

template<class TInputImage, class TOutputImage, class TFunction>

typedef TOutputImage otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::OutputImageType

Definition at line 68 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

Pointer

template<class TInputImage, class TOutputImage, class TFunction>

typedef itk::SmartPointer<Self> otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::Pointer

Definition at line 48 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

ProcessObjectType

template<class TInputImage, class TOutputImage, class TFunction>

typedef itk::ProcessObject otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::ProcessObjectType

Definition at line 73 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

RadiusType

template<class TInputImage, class TOutputImage, class TFunction>

typedef NeighborhoodIteratorType::RadiusType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::RadiusType

Definition at line 98 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

Self

template<class TInputImage, class TOutputImage, class TFunction>

typedef UnaryFunctorNeighborhoodVectorImageFilter otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::Self

Standard class typedefs.

Definition at line 46 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

Superclass

template<class TInputImage, class TOutputImage, class TFunction>

typedef itk::InPlaceImageFilter<TInputImage, TOutputImage> otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::Superclass

Definition at line 47 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

Constructor & Destructor Documentation

UnaryFunctorNeighborhoodVectorImageFilter() [1/2]

template<class TInputImage , class TOutputImage , class TFunction >

otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::UnaryFunctorNeighborhoodVectorImageFilter ( )

protected

Constructor

Definition at line 36 of file otbUnaryFunctorNeighborhoodVectorImageFilter.hxx.

~UnaryFunctorNeighborhoodVectorImageFilter()

template<class TInputImage, class TOutputImage, class TFunction>

otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::~UnaryFunctorNeighborhoodVectorImageFilter ( )

inlineoverrideprotected

Definition at line 111 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

UnaryFunctorNeighborhoodVectorImageFilter() [2/2]

template<class TInputImage, class TOutputImage, class TFunction>

otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::UnaryFunctorNeighborhoodVectorImageFilter ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

template<class TInputImage, class TOutputImage, class TFunction>

virtual::itk::LightObject::Pointer otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::CreateAnother

(

void

)

const

GenerateOutputInformation()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::GenerateOutputInformation ( void  )

overrideprotected

Since the number of components per pixel depends on the radius range, one must reimplement this method to set the proper number of component on the filter output.

Generate the output information

Definition at line 49 of file otbUnaryFunctorNeighborhoodVectorImageFilter.hxx.

GetFunctor()

template<class TInputImage, class TOutputImage, class TFunction>

FunctorType& otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::GetFunctor ( void  )

inline

Get the functor object. The functor is returned by reference. (Functors do not have to derive from itk::LightObject, so they do not necessarily have a reference count. So we cannot return a SmartPointer.)

Definition at line 79 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

GetNameOfClass()

template<class TInputImage, class TOutputImage, class TFunction>

virtual const char* otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented in otb::LocalActivityVectorImageFilter< TInputImage, TOutputImage >, otb::SobelVectorImageFilter< TInputImage, TOutputImage >, otb::LocalGradientVectorImageFilter< TInputImage, TOutputImage >, otb::HorizontalSobelVectorImageFilter< TInputImage, TOutputImage >, and otb::VerticalSobelVectorImageFilter< TInputImage, TOutputImage >.

GetRadius()

template<class TInputImage, class TOutputImage, class TFunction>

virtual RadiusType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::GetRadius ( )

virtual

Set/Get Radius The main difference from itkUnaryFunctiorNeighborhoodImageFilter and otbBinaryFunctorNeighborhoodVectorImageFilter is that the radius may not be square...

New()

template<class TInputImage, class TOutputImage, class TFunction>

static Pointer otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::New ( )

static

Method for creation through the object factory.

operator=()

template<class TInputImage, class TOutputImage, class TFunction>

void otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::operator= ( const Self &  )

privatedelete

SetFunctor()

template<class TInputImage, class TOutputImage, class TFunction>

void otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::SetFunctor ( const FunctorType &  functor )

inline

Set the functor object. This replaces the current Functor with a copy of the specified Functor. This allows the user to specify a functor that has ivars set differently than the default functor. This method requires an operator!=() be defined on the functor (or the compiler's default implementation of operator!=() being appropriate).

Definition at line 90 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

SetRadius()

template<class TInputImage, class TOutputImage, class TFunction>

virtual void otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::SetRadius ( RadiusType  _arg )

virtual

Set/Get Radius The main difference from itkUnaryFunctiorNeighborhoodImageFilter and otbBinaryFunctorNeighborhoodVectorImageFilter is that the radius may not be square...

ThreadedGenerateData()

template<class TInputImage , class TOutputImage , class TFunction >

void otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::ThreadedGenerateData ( const OutputImageRegionType &  outputRegionForThread, itk::ThreadIdType  threadId  )

overrideprotected

UnaryFunctorNeighborhoodVectorImageFilter can be implemented as a multithreaded filter. Therefore, this implementation provides a ThreadedGenerateData() routine which is called for each processing thread. The output image data is allocated automatically by the superclass prior to calling ThreadedGenerateData(). ThreadedGenerateData can only write to the portion of the output image specified by the parameter "outputRegionForThread"

See also

ImageToImageFilter::ThreadedGenerateData(), ImageToImageFilter::GenerateData()

ThreadedGenerateData Performs the neighborhood-wise operation

Definition at line 60 of file otbUnaryFunctorNeighborhoodVectorImageFilter.hxx.

Member Data Documentation

InputImageDimension

template<class TInputImage, class TOutputImage, class TFunction>

const unsigned int otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::InputImageDimension = TInputImage::ImageDimension

static

Dimension

Definition at line 58 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

m_Functor

template<class TInputImage, class TOutputImage, class TFunction>

FunctorType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::m_Functor

private

Definition at line 139 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

m_Radius

template<class TInputImage, class TOutputImage, class TFunction>

RadiusType otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::m_Radius

protected

Definition at line 133 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

OutputImageDimension

template<class TInputImage, class TOutputImage, class TFunction>

const unsigned int otb::UnaryFunctorNeighborhoodVectorImageFilter< TInputImage, TOutputImage, TFunction >::OutputImageDimension = TOutputImage::ImageDimension

static

Dimension

Definition at line 59 of file otbUnaryFunctorNeighborhoodVectorImageFilter.h.

---

The documentation for this class was generated from the following files:

• otbUnaryFunctorNeighborhoodVectorImageFilter.h
• otbUnaryFunctorNeighborhoodVectorImageFilter.hxx
