otb::FormosatImageMetadataInterface Class Reference

#include <otbFormosatImageMetadataInterface.h>

+ Inheritance diagram for otb::FormosatImageMetadataInterface:

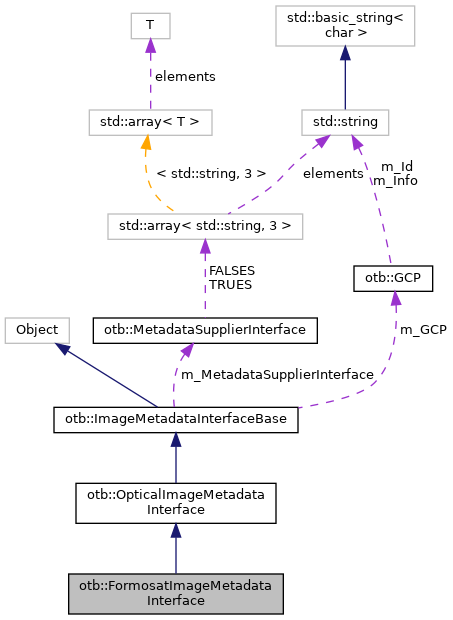

+ Collaboration diagram for otb::FormosatImageMetadataInterface:

Public Types

typedef itk::SmartPointer< const SelfConstPointer

typedef Superclass::ImageType ImageType

typedef Superclass::MetaDataDictionaryType MetaDataDictionaryType

typedef itk::SmartPointer< SelfPointer

typedef FormosatImageMetadataInterface Self

typedef ImageMetadataInterfaceBase Superclass

typedef Superclass::VariableLengthVectorType VariableLengthVectorType

typedef Superclass::VectorType VectorType

- Public Types inherited from otb::OpticalImageMetadataInterface
typedef itk::SmartPointer< const SelfConstPointer

typedef FilterFunctionValues FilterFunctionValuesType

typedef Superclass::ImageType ImageType

typedef otb::ObjectList< FilterFunctionValuesTypeInternalWavelengthSpectralBandVectorType

typedef Superclass::MetaDataDictionaryType MetaDataDictionaryType

typedef itk::SmartPointer< SelfPointer

typedef OpticalImageMetadataInterface Self

typedef ImageMetadataInterfaceBase Superclass

typedef Superclass::VariableLengthVectorType VariableLengthVectorType

typedef Superclass::VectorType VectorType

typedef InternalWavelengthSpectralBandVectorType::Pointer WavelengthSpectralBandVectorType

- Public Types inherited from otb::ImageMetadataInterfaceBase
typedef itk::SmartPointer< const SelfConstPointer

typedef itk::ImageBase< 2 > ImageType

typedef itk::MetaDataDictionary MetaDataDictionaryType

typedef itk::SmartPointer< SelfPointer

typedef ImageMetadataInterfaceBase Self

typedef std::vector< std::string > StringVectorType

typedef itk::Object Superclass

typedef std::vector< unsigned int > UIntVectorType

typedef unsigned int UnsignedIntType

typedef MetaDataKey::VariableLengthVectorType VariableLengthVectorType

typedef MetaDataKey::VectorType VectorType


Public Member Functions

unsigned int BandIndexToWavelengthPosition (unsigned int i) const override

virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

void Parse (ImageMetadata &imd) override

- Public Member Functions inherited from otb::ImageMetadataInterfaceBase
const MetaDataDictionaryTypeGetMetaDataDictionary () const

std::string GetProjectionRef () const

void SetImage (ImageType *image)

void SetMetaDataDictionary (const MetaDataDictionaryType &dict)

void SetMetadataSupplierInterface (const MetadataSupplierInterface &)

std::string GetGCPProjection () const

UnsignedIntType GetGCPCount () const

GCPGetGCPs (unsigned int GCPnum)

std::string GetGCPId (unsigned int GCPnum) const

std::string GetGCPInfo (unsigned int GCPnum) const

double GetGCPRow (unsigned int GCPnum) const

double GetGCPCol (unsigned int GCPnum) const

double GetGCPX (unsigned int GCPnum) const

double GetGCPY (unsigned int GCPnum) const

double GetGCPZ (unsigned int GCPnum) const

VectorType GetGeoTransform () const

VectorType GetUpperLeftCorner () const

VectorType GetUpperRightCorner () const

VectorType GetLowerLeftCorner () const

VectorType GetLowerRightCorner () const

const std::string & Fetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)

const double & Fetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)

const MetaData::TimePointFetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)

const std::string & Fetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)

bool CheckFetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)

const boost::any & FetchRPC (ImageMetadata &imd, const double lineOffset=0.0, const double sampleOffset=0.0)


Static Public Member Functions

static Pointer New ()


Protected Member Functions

 FormosatImageMetadataInterface ()=default

 ~FormosatImageMetadataInterface ()=default

- Protected Member Functions inherited from otb::OpticalImageMetadataInterface
 OpticalImageMetadataInterface ()=default

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 ~OpticalImageMetadataInterface () override=default

- Protected Member Functions inherited from otb::ImageMetadataInterfaceBase
 ImageMetadataInterfaceBase ()=default

 ~ImageMetadataInterfaceBase () override=default

void PrintSelf (std::ostream &os, itk::Indent indent) const override


Private Member Functions

void FetchSatAngles (const std::vector< double > &incidenceAngles, const std::vector< double > &alongTrackViewingAngles, const std::vector< double > &acrossTrackViewingAngles, const std::vector< double > &sceneOrientation, const std::string &softwareVersion, double satAzimuth, ImageMetadata &imd)

 FormosatImageMetadataInterface (const Self &)=delete

void operator= (const Self &)=delete

void FetchSpectralSensitivity (ImageMetadata &)


Additional Inherited Members

- Protected Attributes inherited from otb::ImageMetadataInterfaceBase
MetaDataDictionaryType m_MetaDataDictionary

const MetadataSupplierInterfacem_MetadataSupplierInterface = nullptr


Detailed Description

Creation of an "otb" FormosatImageMetadataInterface that gets metadata.

Definition at line 36 of file otbFormosatImageMetadataInterface.h.

Member Typedef Documentation

◆ ConstPointer

typedef itk::SmartPointer<const Self> otb::FormosatImageMetadataInterface::ConstPointer

Definition at line 42 of file otbFormosatImageMetadataInterface.h.

◆ ImageType

Definition at line 48 of file otbFormosatImageMetadataInterface.h.

◆ MetaDataDictionaryType

Definition at line 51 of file otbFormosatImageMetadataInterface.h.

◆ Pointer

Definition at line 41 of file otbFormosatImageMetadataInterface.h.

◆ Self

Definition at line 39 of file otbFormosatImageMetadataInterface.h.

◆ Superclass

Definition at line 40 of file otbFormosatImageMetadataInterface.h.

◆ VariableLengthVectorType

Definition at line 53 of file otbFormosatImageMetadataInterface.h.

◆ VectorType

Definition at line 52 of file otbFormosatImageMetadataInterface.h.

Constructor & Destructor Documentation

◆ FormosatImageMetadataInterface() [1/2]

otb::FormosatImageMetadataInterface::FormosatImageMetadataInterface ( )
protecteddefault

◆ ~FormosatImageMetadataInterface()

otb::FormosatImageMetadataInterface::~FormosatImageMetadataInterface ( )
protecteddefault

◆ FormosatImageMetadataInterface() [2/2]

otb::FormosatImageMetadataInterface::FormosatImageMetadataInterface ( const Self )
privatedelete

Member Function Documentation

◆ BandIndexToWavelengthPosition()

unsigned int otb::FormosatImageMetadataInterface::BandIndexToWavelengthPosition ( unsigned int  i) const
overridevirtual

This method is to handle the permutation of the spectral band by some image provider in most cases, this method won't change the value, but for SPOT data, the bands are set up as 2 1 0 3 in the tiff file, this method which is overloaded for SPOT enables to retrieve the proper band.

Reimplemented from otb::OpticalImageMetadataInterface.

◆ CreateAnother()

virtual::itk::LightObject::Pointer otb::FormosatImageMetadataInterface::CreateAnother ( void  ) const

◆ FetchSatAngles()

void otb::FormosatImageMetadataInterface::FetchSatAngles ( const std::vector< double > &  incidenceAngles,
const std::vector< double > &  alongTrackViewingAngles,
const std::vector< double > &  acrossTrackViewingAngles,
const std::vector< double > &  sceneOrientation,
const std::string &  softwareVersion,
double  satAzimuth,
ImageMetadata imd
)
private

◆ FetchSpectralSensitivity()

void otb::FormosatImageMetadataInterface::FetchSpectralSensitivity ( ImageMetadata )
private

Vector that contains the filter function value in 6S format (step of 0.0025 micro m). There values a computed by 6S.

◆ GetNameOfClass()

virtual const char* otb::FormosatImageMetadataInterface::GetNameOfClass ( ) const
virtual

Run-time type information (and related methods).

Reimplemented from otb::OpticalImageMetadataInterface.

◆ New()

static Pointer otb::FormosatImageMetadataInterface::New ( )
static

Method for creation through the object factory.

◆ operator=()

void otb::FormosatImageMetadataInterface::operator= ( const Self )
privatedelete

◆ Parse()

void otb::FormosatImageMetadataInterface::Parse ( ImageMetadata )
overridevirtual

Parses the metadata using the MetadataSupplierInterface and fill the ImageMetadata object Raises "MissingMetadataException" if parsing fails.

Reimplemented from otb::ImageMetadataInterfaceBase.


The documentation for this class was generated from the following file:
