otb::GeometriesProjectionFilter Class Reference

#include <otbGeometriesProjectionFilter.h>

Inheritance diagram for otb::GeometriesProjectionFilter:

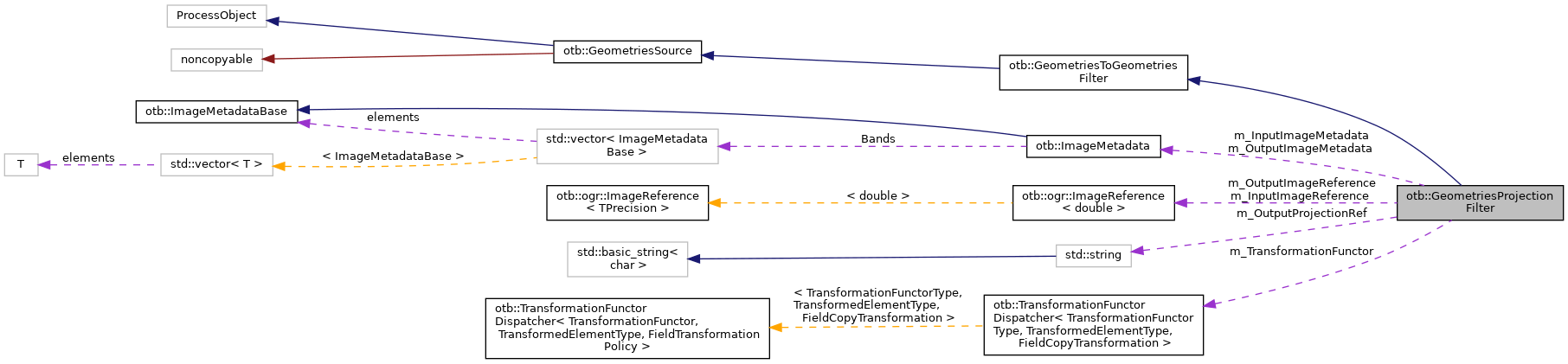

Collaboration diagram for otb::GeometriesProjectionFilter:

Public Types
Standard ITK typedefs
typedef GeometriesProjectionFilter	Self
typedef GeometriesToGeometriesFilter	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Public Types inherited from otb::GeometriesToGeometriesFilter
typedef GeometriesToGeometriesFilter	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef GeometriesSet	InputGeometriesType
typedef GeometriesSet	OutputGeometriesType
Public Types inherited from otb::GeometriesSource
typedef GeometriesSource	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::ProcessObject::DataObjectPointerArraySizeType	DataObjectPointerArraySizeType
typedef GeometriesSet	OutputGeometriesType

Public Member Functions
ImageMetadata accessors and mutators
const ImageMetadata *	GetInputImageMetadata () const
void	SetInputImageMetadata (const ImageMetadata *imd)
const ImageMetadata *	GetOutputImageMetadata () const
void	SetOutputImageMetadata (const ImageMetadata *imd)
Projection references accessors and mutators
Projection references accessors and mutators. As the Input Projection Reference comes from the Input Geometries set, it can't be set independently.
virtual void	SetOutputProjectionRef (const char *_arg)
virtual const char *	GetOutputProjectionRef () const
Public Member Functions inherited from otb::GeometriesToGeometriesFilter
virtual void	SetInput (const InputGeometriesType *input)
const InputGeometriesType *	GetInput (void)
Public Member Functions inherited from otb::GeometriesSource
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual OutputGeometriesType *	GetOutput (void)
virtual OutputGeometriesType *	GetOutput (DataObjectPointerArraySizeType idx)
virtual void	SetOutput (OutputGeometriesType *output, DataObjectPointerArraySizeType idx=0)
void	PrepareOutputs () override

Standard macros
static Pointer	New ()
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const

I/O typedefs
typedef Superclass::InputGeometriesType	InputGeometriesType
typedef Superclass::OutputGeometriesType	OutputGeometriesType
typedef ogr::ImageReference< double >	ImageReference
OGRSpatialReference *	DoDefineNewLayerSpatialReference (ogr::Layer const &source) const override
void	DoProcessLayer (ogr::Layer const &source, ogr::Layer &destination) const override
void	DoFinalizeInitialization () override
void	DoDefineNewLayerFields (ogr::Layer const &source, ogr::Layer &dest) const override
	GeometriesProjectionFilter ()
	~GeometriesProjectionFilter () override
void	GenerateOutputInformation (void) override

Image Reference (origin, spacing)
ImageReference	m_InputImageReference
ImageReference	m_OutputImageReference
std::string	m_OutputProjectionRef
const ImageMetadata *	m_InputImageMetadata = nullptr
const ImageMetadata *	m_OutputImageMetadata = nullptr
void	SetInputSpacing (ImageReference::SpacingType const &spacing)
void	SetOutputSpacing (ImageReference::SpacingType const &spacing)
void	SetInputOrigin (ImageReference::OriginType const &origin)
void	SetOutputOrigin (ImageReference::OriginType const &origin)

Functor definition
typedef internal::ReprojectTransformationFunctor	TransformationFunctorType
typedef TransformationFunctorType::TransformedElementType	TransformedElementType
typedef TransformationFunctorDispatcher< TransformationFunctorType, TransformedElementType, FieldCopyTransformation >	TransformationFunctorDispatcherType
TransformationFunctorDispatcherType	m_TransformationFunctor

1 Point Transformation definition
typedef TransformationFunctorType::InternalTransformType	InternalTransformType
typedef TransformationFunctorType::InternalTransformPointerType	InternalTransformPointerType
InternalTransformPointerType	m_Transform

Additional Inherited Members
Static Public Member Functions inherited from otb::GeometriesSource
static Pointer	New ()
Protected Member Functions inherited from otb::GeometriesToGeometriesFilter
	GeometriesToGeometriesFilter ()
	~GeometriesToGeometriesFilter () override
void	GenerateData (void) override
Protected Member Functions inherited from otb::GeometriesSource
	GeometriesSource ()
	~GeometriesSource () override
virtual void	DoAllocateOutputs ()

Detailed Description

Projection filter for OGR geometries sets.

Since

OTB v 3.14.0

Parameters

[in]	InputGeometriesSet
[in]	InputImageMetadata	if the InputGeometriesSet doesn't have a projection reference (i.e. a OGRSpatialReference), this filter will use the InputImageMetadata to describe the positioning of the geometries set.
[in,out]	OutputGeometriesSet	This set of geometries needs to be given to the filter (in order to set the exact output file/OGR driver). However the filter is in charge of filling the geometries set.
[in]	OutputProjectionRef	wkt description of the OGRSpatialReference to project the InputGeometriesSet into.
[in]	OutputImageMetadata	if no OutputProjectionRef is set, the projection will be done according to the OutputImageMetadata.

Note

Unlike VectorDataProjectionFilter, we have to explicitly set which to use between projection reference or ImageMetadata.

This filter does not support in-place transformation as the spatial references of the new layer are expected to change.

Definition at line 170 of file otbGeometriesProjectionFilter.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::GeometriesProjectionFilter::ConstPointer

Definition at line 179 of file otbGeometriesProjectionFilter.h.

ImageReference

typedef ogr::ImageReference<double> otb::GeometriesProjectionFilter::ImageReference

Hook used to determine the OGRSpatialReference when creating a new layer.

Parameters

[in]

source

source Layer for reference (in case it has relevant information).

Returns

a OGRSpatialReference that matches the OutputProjectionRef of the filter. It's up to the caller to take responsibility of the returned object.

Definition at line 198 of file otbGeometriesProjectionFilter.h.

InputGeometriesType

typedef Superclass::InputGeometriesType otb::GeometriesProjectionFilter::InputGeometriesType

Hook used to determine the OGRSpatialReference when creating a new layer.

Parameters

[in]

source

source Layer for reference (in case it has relevant information).

Returns

a OGRSpatialReference that matches the OutputProjectionRef of the filter. It's up to the caller to take responsibility of the returned object.

Definition at line 194 of file otbGeometriesProjectionFilter.h.

InternalTransformPointerType

typedef TransformationFunctorType::InternalTransformPointerType otb::GeometriesProjectionFilter::InternalTransformPointerType

private

Definition at line 313 of file otbGeometriesProjectionFilter.h.

InternalTransformType

typedef TransformationFunctorType::InternalTransformType otb::GeometriesProjectionFilter::InternalTransformType

private

Definition at line 312 of file otbGeometriesProjectionFilter.h.

OutputGeometriesType

typedef Superclass::OutputGeometriesType otb::GeometriesProjectionFilter::OutputGeometriesType

Hook used to determine the OGRSpatialReference when creating a new layer.

Parameters

[in]

source

source Layer for reference (in case it has relevant information).

Returns

a OGRSpatialReference that matches the OutputProjectionRef of the filter. It's up to the caller to take responsibility of the returned object.

Definition at line 196 of file otbGeometriesProjectionFilter.h.

Pointer

typedef itk::SmartPointer<Self> otb::GeometriesProjectionFilter::Pointer

Definition at line 178 of file otbGeometriesProjectionFilter.h.

Self

typedef GeometriesProjectionFilter otb::GeometriesProjectionFilter::Self

Definition at line 176 of file otbGeometriesProjectionFilter.h.

Superclass

typedef GeometriesToGeometriesFilter otb::GeometriesProjectionFilter::Superclass

Definition at line 177 of file otbGeometriesProjectionFilter.h.

TransformationFunctorDispatcherType

typedef TransformationFunctorDispatcher<TransformationFunctorType, TransformedElementType, FieldCopyTransformation> otb::GeometriesProjectionFilter::TransformationFunctorDispatcherType

private

Definition at line 305 of file otbGeometriesProjectionFilter.h.

TransformationFunctorType

typedef internal::ReprojectTransformationFunctor otb::GeometriesProjectionFilter::TransformationFunctorType

private

Definition at line 303 of file otbGeometriesProjectionFilter.h.

TransformedElementType

typedef TransformationFunctorType::TransformedElementType otb::GeometriesProjectionFilter::TransformedElementType

private

Definition at line 304 of file otbGeometriesProjectionFilter.h.

Constructor & Destructor Documentation

GeometriesProjectionFilter()

otb::GeometriesProjectionFilter::GeometriesProjectionFilter ( )

protected

Default constructor.

~GeometriesProjectionFilter()

otb::GeometriesProjectionFilter::~GeometriesProjectionFilter ( )

overrideprotected

Destructor.

Member Function Documentation

CreateAnother()

virtual::itk::LightObject::Pointer otb::GeometriesProjectionFilter::CreateAnother

(

void

)

const

Method for creation through the object factory.

DoDefineNewLayerFields()

void otb::GeometriesProjectionFilter::DoDefineNewLayerFields ( ogr::Layer const &  source, ogr::Layer &  dest  ) const

overrideprivatevirtual

Hook used to define the fields of the new layer.

Parameters

[in]	source	source Layer – for reference
[in,out]	dest	destination Layer

Just forwards the fields definition to the FieldTransformationPolicy encapsuled in the TransformationFunctorDispatcherType.

Implements otb::GeometriesToGeometriesFilter.

DoDefineNewLayerSpatialReference()

OGRSpatialReference* otb::GeometriesProjectionFilter::DoDefineNewLayerSpatialReference ( ogr::Layer const &  source ) const

overrideprivatevirtual

Hook used to determine the OGRSpatialReference when creating a new layer.

Parameters

[in]

source

source Layer for reference (in case it has relevant information).

Returns

a OGRSpatialReference that matches the OutputProjectionRef of the filter. It's up to the caller to take responsibility of the returned object.

Reimplemented from otb::GeometriesToGeometriesFilter.

DoFinalizeInitialization()

void otb::GeometriesProjectionFilter::DoFinalizeInitialization ( )

overrideprivatevirtual

Hook used to conclude the initialization phase. Global ogr::DataSource settings for the m_Transform functor are forwarded to the functor. ogr::Layer specific settings will be set at the last moment from DoProcessLayer().

Reimplemented from otb::GeometriesToGeometriesFilter.

DoProcessLayer()

void otb::GeometriesProjectionFilter::DoProcessLayer ( ogr::Layer const &  source, ogr::Layer &  destination  ) const

overrideprivatevirtual

Hook that actually filters an OGR Layer.

Parameters

[in]	source	Input layer
[in,out]	destination	Output layer

Before forwarding the transformation to the m_TransformationFunctor, this specialization finishes initializing the inner transformation functor. Indeed some values depend on the current layer to reproject and thus, the inner-filter working on ogr::DataSource cannot be globally configured once and for all.

Implements otb::GeometriesToGeometriesFilter.

GenerateOutputInformation()

void otb::GeometriesProjectionFilter::GenerateOutputInformation ( void  )

overrideprotected

Computes output information.

Postcondition

m_OutputProjectionRef contains all its related meta-data

GetInputImageMetadata()

const ImageMetadata* otb::GeometriesProjectionFilter::GetInputImageMetadata ( ) const

inline

Definition at line 267 of file otbGeometriesProjectionFilter.h.

GetNameOfClass()

virtual const char* otb::GeometriesProjectionFilter::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from otb::GeometriesToGeometriesFilter.

GetOutputImageMetadata()

const ImageMetadata* otb::GeometriesProjectionFilter::GetOutputImageMetadata ( ) const

inline

Definition at line 278 of file otbGeometriesProjectionFilter.h.

GetOutputProjectionRef()

virtual const char* otb::GeometriesProjectionFilter::GetOutputProjectionRef ( ) const

virtual

New()

static Pointer otb::GeometriesProjectionFilter::New ( )

static

Method for creation through the object factory.

SetInputImageMetadata()

void otb::GeometriesProjectionFilter::SetInputImageMetadata ( const ImageMetadata *  imd )

inline

Definition at line 272 of file otbGeometriesProjectionFilter.h.

SetInputOrigin()

void otb::GeometriesProjectionFilter::SetInputOrigin ( ImageReference::OriginType const &  origin )

inline

Definition at line 72 of file otbGeometriesProjectionFilter.hxx.

SetInputSpacing()

void otb::GeometriesProjectionFilter::SetInputSpacing ( ImageReference::SpacingType const &  spacing )

inline

Definition at line 62 of file otbGeometriesProjectionFilter.hxx.

SetOutputImageMetadata()

void otb::GeometriesProjectionFilter::SetOutputImageMetadata ( const ImageMetadata *  imd )

inline

Definition at line 282 of file otbGeometriesProjectionFilter.h.

SetOutputOrigin()

void otb::GeometriesProjectionFilter::SetOutputOrigin ( ImageReference::OriginType const &  origin )

inline

Definition at line 77 of file otbGeometriesProjectionFilter.hxx.

SetOutputProjectionRef()

virtual void otb::GeometriesProjectionFilter::SetOutputProjectionRef ( const char *  _arg )

virtual

SetOutputSpacing()

void otb::GeometriesProjectionFilter::SetOutputSpacing ( ImageReference::SpacingType const &  spacing )

inline

Definition at line 67 of file otbGeometriesProjectionFilter.hxx.

Member Data Documentation

m_InputImageMetadata

const ImageMetadata* otb::GeometriesProjectionFilter::m_InputImageMetadata = nullptr

private

Definition at line 325 of file otbGeometriesProjectionFilter.h.

m_InputImageReference

ImageReference otb::GeometriesProjectionFilter::m_InputImageReference

private

Definition at line 320 of file otbGeometriesProjectionFilter.h.

m_OutputImageMetadata

const ImageMetadata* otb::GeometriesProjectionFilter::m_OutputImageMetadata = nullptr

private

Definition at line 326 of file otbGeometriesProjectionFilter.h.

m_OutputImageReference

ImageReference otb::GeometriesProjectionFilter::m_OutputImageReference

private

Definition at line 321 of file otbGeometriesProjectionFilter.h.

m_OutputProjectionRef

std::string otb::GeometriesProjectionFilter::m_OutputProjectionRef

private

Definition at line 324 of file otbGeometriesProjectionFilter.h.

m_Transform

InternalTransformPointerType otb::GeometriesProjectionFilter::m_Transform

private

Definition at line 315 of file otbGeometriesProjectionFilter.h.

m_TransformationFunctor

TransformationFunctorDispatcherType otb::GeometriesProjectionFilter::m_TransformationFunctor

private

Definition at line 307 of file otbGeometriesProjectionFilter.h.

---

The documentation for this class was generated from the following files:

• otbGeometriesProjectionFilter.h
• otbGeometriesProjectionFilter.hxx
