Public Types | Public Member Functions | Static Public Member Functions | Static Public Attributes | Protected Member Functions | Private Member Functions | Private Attributes | List of all members

#include <otbStreamingMinMaxImageFilter.h>

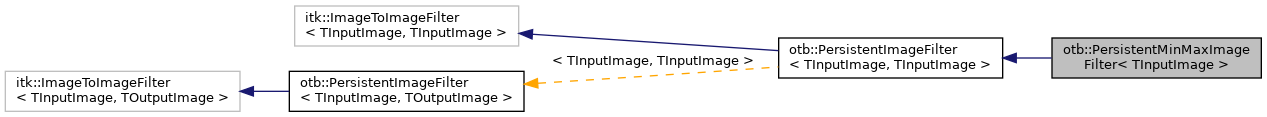

+ Inheritance diagram for otb::PersistentMinMaxImageFilter< TInputImage >:

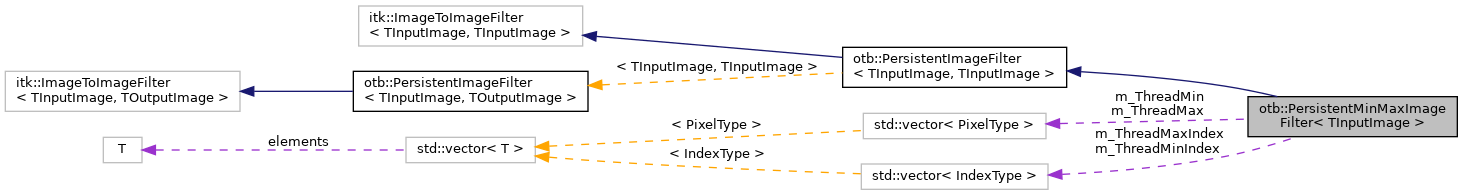

+ Collaboration diagram for otb::PersistentMinMaxImageFilter< TInputImage >:

Public Types

typedef itk::SmartPointer< const SelfConstPointer

typedef itk::DataObject::Pointer DataObjectPointer

typedef itk::ProcessObject::DataObjectPointerArraySizeType DataObjectPointerArraySizeType

typedef TInputImage ImageType

typedef itk::SimpleDataObjectDecorator< IndexTypeIndexObjectType

typedef TInputImage::IndexType IndexType

typedef TInputImage::Pointer InputImagePointer

typedef itk::SimpleDataObjectDecorator< PixelTypePixelObjectType

typedef TInputImage::PixelType PixelType

typedef itk::SmartPointer< SelfPointer

typedef TInputImage::RegionType RegionType

typedef PersistentMinMaxImageFilter Self

typedef TInputImage::SizeType SizeType

typedef PersistentImageFilter< TInputImage, TInputImage > Superclass

- Public Types inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
typedef itk::SmartPointer< const SelfConstPointer

typedef TInputImage InputImageType

typedef TInputImage OutputImageType

typedef itk::SmartPointer< SelfPointer

typedef PersistentImageFilter Self

typedef itk::ImageToImageFilter< TInputImage, TInputImage > Superclass


Public Member Functions

virtual ::itk::LightObject::Pointer CreateAnother (void) const

virtual const char * GetNameOfClass () const

DataObjectPointer MakeOutput (DataObjectPointerArraySizeType idx) override

PixelType GetMinimum () const

PixelObjectTypeGetMinimumOutput ()

const PixelObjectTypeGetMinimumOutput () const

PixelType GetMaximum () const

PixelObjectTypeGetMaximumOutput ()

const PixelObjectTypeGetMaximumOutput () const

IndexType GetMinimumIndex () const

IndexObjectTypeGetMinimumIndexOutput ()

const IndexObjectTypeGetMinimumIndexOutput () const

IndexType GetMaximumIndex () const

IndexObjectTypeGetMaximumIndexOutput ()

const IndexObjectTypeGetMaximumIndexOutput () const

void AllocateOutputs () override

void GenerateOutputInformation () override

void Synthetize (void) override

void Reset (void) override


Static Public Member Functions

static Pointer New ()


Static Public Attributes

static const unsigned int ImageDimension = TInputImage::ImageDimension

static const unsigned int InputImageDimension = TInputImage::ImageDimension


Protected Member Functions

 PersistentMinMaxImageFilter ()

void PrintSelf (std::ostream &os, itk::Indent indent) const override

void ThreadedGenerateData (const RegionType &outputRegionForThread, itk::ThreadIdType threadId) override

 ~PersistentMinMaxImageFilter () override

- Protected Member Functions inherited from otb::PersistentImageFilter< TInputImage, TInputImage >
 PersistentImageFilter ()

void PrintSelf (std::ostream &os, itk::Indent indent) const override

 ~PersistentImageFilter () override


Private Member Functions

void operator= (const Self &)=delete

 PersistentMinMaxImageFilter (const Self &)=delete


Private Attributes

std::vector< PixelTypem_ThreadMax

std::vector< IndexTypem_ThreadMaxIndex

std::vector< PixelTypem_ThreadMin

std::vector< IndexTypem_ThreadMinIndex


Detailed Description

template<class TInputImage>
class otb::PersistentMinMaxImageFilter< TInputImage >

Compute min. max of an image using the output requested region.

This filter persists its temporary data. It means that if you Update it n times on n different requested regions, the output min/max will be the statistics of the whole set of n regions.

To reset the temporary data, one should call the Reset() function.

To get the min/max once the regions have been processed via the pipeline, use the Synthetize() method.

See also
PersistentImageFilter

Definition at line 52 of file otbStreamingMinMaxImageFilter.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImage>
typedef itk::SmartPointer<const Self> otb::PersistentMinMaxImageFilter< TInputImage >::ConstPointer

Definition at line 59 of file otbStreamingMinMaxImageFilter.h.

◆ DataObjectPointer

template<class TInputImage>
typedef itk::DataObject::Pointer otb::PersistentMinMaxImageFilter< TInputImage >::DataObjectPointer

Smart Pointer type to a DataObject.

Definition at line 82 of file otbStreamingMinMaxImageFilter.h.

◆ DataObjectPointerArraySizeType

template<class TInputImage>
typedef itk::ProcessObject::DataObjectPointerArraySizeType otb::PersistentMinMaxImageFilter< TInputImage >::DataObjectPointerArraySizeType

Definition at line 83 of file otbStreamingMinMaxImageFilter.h.

◆ ImageType

template<class TInputImage>
typedef TInputImage otb::PersistentMinMaxImageFilter< TInputImage >::ImageType

Image related typedefs.

Definition at line 65 of file otbStreamingMinMaxImageFilter.h.

◆ IndexObjectType

template<class TInputImage>
typedef itk::SimpleDataObjectDecorator<IndexType> otb::PersistentMinMaxImageFilter< TInputImage >::IndexObjectType

Definition at line 87 of file otbStreamingMinMaxImageFilter.h.

◆ IndexType

template<class TInputImage>
typedef TInputImage::IndexType otb::PersistentMinMaxImageFilter< TInputImage >::IndexType

Definition at line 73 of file otbStreamingMinMaxImageFilter.h.

◆ InputImagePointer

template<class TInputImage>
typedef TInputImage::Pointer otb::PersistentMinMaxImageFilter< TInputImage >::InputImagePointer

Definition at line 69 of file otbStreamingMinMaxImageFilter.h.

◆ PixelObjectType

template<class TInputImage>
typedef itk::SimpleDataObjectDecorator<PixelType> otb::PersistentMinMaxImageFilter< TInputImage >::PixelObjectType

Type of DataObjects used for scalar outputs

Definition at line 86 of file otbStreamingMinMaxImageFilter.h.

◆ PixelType

template<class TInputImage>
typedef TInputImage::PixelType otb::PersistentMinMaxImageFilter< TInputImage >::PixelType

Definition at line 74 of file otbStreamingMinMaxImageFilter.h.

◆ Pointer

template<class TInputImage>
typedef itk::SmartPointer<Self> otb::PersistentMinMaxImageFilter< TInputImage >::Pointer

Definition at line 58 of file otbStreamingMinMaxImageFilter.h.

◆ RegionType

template<class TInputImage>
typedef TInputImage::RegionType otb::PersistentMinMaxImageFilter< TInputImage >::RegionType

Definition at line 71 of file otbStreamingMinMaxImageFilter.h.

◆ Self

template<class TInputImage>
typedef PersistentMinMaxImageFilter otb::PersistentMinMaxImageFilter< TInputImage >::Self

Standard Self typedef

Definition at line 56 of file otbStreamingMinMaxImageFilter.h.

◆ SizeType

template<class TInputImage>
typedef TInputImage::SizeType otb::PersistentMinMaxImageFilter< TInputImage >::SizeType

Definition at line 72 of file otbStreamingMinMaxImageFilter.h.

◆ Superclass

template<class TInputImage>
typedef PersistentImageFilter<TInputImage, TInputImage> otb::PersistentMinMaxImageFilter< TInputImage >::Superclass

Definition at line 57 of file otbStreamingMinMaxImageFilter.h.

Constructor & Destructor Documentation

◆ PersistentMinMaxImageFilter() [1/2]

template<class TInputImage >
otb::PersistentMinMaxImageFilter< TInputImage >::PersistentMinMaxImageFilter ( )
protected

Definition at line 35 of file otbStreamingMinMaxImageFilter.hxx.

◆ ~PersistentMinMaxImageFilter()

template<class TInputImage>
otb::PersistentMinMaxImageFilter< TInputImage >::~PersistentMinMaxImageFilter ( )
inlineoverrideprotected

Definition at line 142 of file otbStreamingMinMaxImageFilter.h.

◆ PersistentMinMaxImageFilter() [2/2]

template<class TInputImage>
otb::PersistentMinMaxImageFilter< TInputImage >::PersistentMinMaxImageFilter ( const Self )
privatedelete

Member Function Documentation

◆ AllocateOutputs()

template<class TInputImage >
void otb::PersistentMinMaxImageFilter< TInputImage >::AllocateOutputs ( )
override

Pass the input through unmodified. Do this by Grafting in the AllocateOutputs method.

Definition at line 141 of file otbStreamingMinMaxImageFilter.hxx.

◆ CreateAnother()

template<class TInputImage>
virtual::itk::LightObject::Pointer otb::PersistentMinMaxImageFilter< TInputImage >::CreateAnother ( void  ) const

◆ GenerateOutputInformation()

template<class TInputImage >
void otb::PersistentMinMaxImageFilter< TInputImage >::GenerateOutputInformation ( void  )
override

Pass the input through unmodified. Do this by Grafting in the AllocateOutputs method.

Definition at line 126 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMaximum()

template<class TInputImage>
PixelType otb::PersistentMinMaxImageFilter< TInputImage >::GetMaximum ( ) const
inline

Return the computed Maximum.

Definition at line 99 of file otbStreamingMinMaxImageFilter.h.

◆ GetMaximumIndex()

template<class TInputImage>
IndexType otb::PersistentMinMaxImageFilter< TInputImage >::GetMaximumIndex ( ) const
inline

Return the computed Maximum.

Definition at line 117 of file otbStreamingMinMaxImageFilter.h.

◆ GetMaximumIndexOutput() [1/2]

template<class TInputImage >
PersistentMinMaxImageFilter< TInputImage >::IndexObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMaximumIndexOutput ( )

Return the computed Maximum.

Definition at line 114 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMaximumIndexOutput() [2/2]

template<class TInputImage >
const PersistentMinMaxImageFilter< TInputImage >::IndexObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMaximumIndexOutput ( ) const

Return the computed Maximum.

Definition at line 120 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMaximumOutput() [1/2]

template<class TInputImage >
PersistentMinMaxImageFilter< TInputImage >::PixelObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMaximumOutput ( )

Return the computed Maximum.

Definition at line 89 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMaximumOutput() [2/2]

template<class TInputImage >
const PersistentMinMaxImageFilter< TInputImage >::PixelObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMaximumOutput ( ) const

Return the computed Maximum.

Definition at line 95 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMinimum()

template<class TInputImage>
PixelType otb::PersistentMinMaxImageFilter< TInputImage >::GetMinimum ( ) const
inline

Return the computed Minimum.

Definition at line 90 of file otbStreamingMinMaxImageFilter.h.

◆ GetMinimumIndex()

template<class TInputImage>
IndexType otb::PersistentMinMaxImageFilter< TInputImage >::GetMinimumIndex ( ) const
inline

Return the computed Minimum.

Definition at line 108 of file otbStreamingMinMaxImageFilter.h.

◆ GetMinimumIndexOutput() [1/2]

template<class TInputImage >
PersistentMinMaxImageFilter< TInputImage >::IndexObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMinimumIndexOutput ( )

Return the computed Minimum.

Definition at line 102 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMinimumIndexOutput() [2/2]

template<class TInputImage >
const PersistentMinMaxImageFilter< TInputImage >::IndexObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMinimumIndexOutput ( ) const

Return the computed Minimum.

Definition at line 108 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMinimumOutput() [1/2]

template<class TInputImage >
PersistentMinMaxImageFilter< TInputImage >::PixelObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMinimumOutput ( )

Return the computed Minimum.

Definition at line 77 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetMinimumOutput() [2/2]

template<class TInputImage >
const PersistentMinMaxImageFilter< TInputImage >::PixelObjectType * otb::PersistentMinMaxImageFilter< TInputImage >::GetMinimumOutput ( ) const

Return the computed Minimum.

Definition at line 83 of file otbStreamingMinMaxImageFilter.hxx.

◆ GetNameOfClass()

template<class TInputImage>
virtual const char* otb::PersistentMinMaxImageFilter< TInputImage >::GetNameOfClass ( ) const
virtual

Runtime information support.

Reimplemented from otb::PersistentImageFilter< TInputImage, TInputImage >.

◆ MakeOutput()

template<class TInputImage >
itk::DataObject::Pointer otb::PersistentMinMaxImageFilter< TInputImage >::MakeOutput ( DataObjectPointerArraySizeType  idx)
override

Make a DataObject of the correct type to be used as the specified output.

Definition at line 56 of file otbStreamingMinMaxImageFilter.hxx.

◆ New()

template<class TInputImage>
static Pointer otb::PersistentMinMaxImageFilter< TInputImage >::New ( )
static

Method for creation through the object factory.

◆ operator=()

template<class TInputImage>
void otb::PersistentMinMaxImageFilter< TInputImage >::operator= ( const Self )
privatedelete

◆ PrintSelf()

template<class TImage >
void otb::PersistentMinMaxImageFilter< TImage >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

Definition at line 229 of file otbStreamingMinMaxImageFilter.hxx.

◆ Reset()

template<class TInputImage >
void otb::PersistentMinMaxImageFilter< TInputImage >::Reset ( void  )
overridevirtual

Pass the input through unmodified. Do this by Grafting in the AllocateOutputs method.

Implements otb::PersistentImageFilter< TInputImage, TInputImage >.

Definition at line 183 of file otbStreamingMinMaxImageFilter.hxx.

◆ Synthetize()

template<class TInputImage >
void otb::PersistentMinMaxImageFilter< TInputImage >::Synthetize ( void  )
overridevirtual

Pass the input through unmodified. Do this by Grafting in the AllocateOutputs method.

Implements otb::PersistentImageFilter< TInputImage, TInputImage >.

Definition at line 151 of file otbStreamingMinMaxImageFilter.hxx.

◆ ThreadedGenerateData()

template<class TInputImage >
void otb::PersistentMinMaxImageFilter< TInputImage >::ThreadedGenerateData ( const RegionType outputRegionForThread,
itk::ThreadIdType  threadId
)
overrideprotected

Multi-thread version GenerateData.

Definition at line 201 of file otbStreamingMinMaxImageFilter.hxx.

References value().

Member Data Documentation

◆ ImageDimension

template<class TInputImage>
const unsigned int otb::PersistentMinMaxImageFilter< TInputImage >::ImageDimension = TInputImage::ImageDimension
static

Image related typedefs.

Definition at line 79 of file otbStreamingMinMaxImageFilter.h.

◆ InputImageDimension

template<class TInputImage>
const unsigned int otb::PersistentMinMaxImageFilter< TInputImage >::InputImageDimension = TInputImage::ImageDimension
static

Definition at line 76 of file otbStreamingMinMaxImageFilter.h.

◆ m_ThreadMax

template<class TInputImage>
std::vector<PixelType> otb::PersistentMinMaxImageFilter< TInputImage >::m_ThreadMax
private

Definition at line 155 of file otbStreamingMinMaxImageFilter.h.

◆ m_ThreadMaxIndex

template<class TInputImage>
std::vector<IndexType> otb::PersistentMinMaxImageFilter< TInputImage >::m_ThreadMaxIndex
private

Definition at line 157 of file otbStreamingMinMaxImageFilter.h.

◆ m_ThreadMin

template<class TInputImage>
std::vector<PixelType> otb::PersistentMinMaxImageFilter< TInputImage >::m_ThreadMin
private

Definition at line 154 of file otbStreamingMinMaxImageFilter.h.

◆ m_ThreadMinIndex

template<class TInputImage>
std::vector<IndexType> otb::PersistentMinMaxImageFilter< TInputImage >::m_ThreadMinIndex
private

Definition at line 156 of file otbStreamingMinMaxImageFilter.h.


The documentation for this class was generated from the following files:
