otb::WorldView2ImageMetadataInterface Class Reference

#include <otbWorldView2ImageMetadataInterface.h>

Inheritance diagram for otb::WorldView2ImageMetadataInterface:

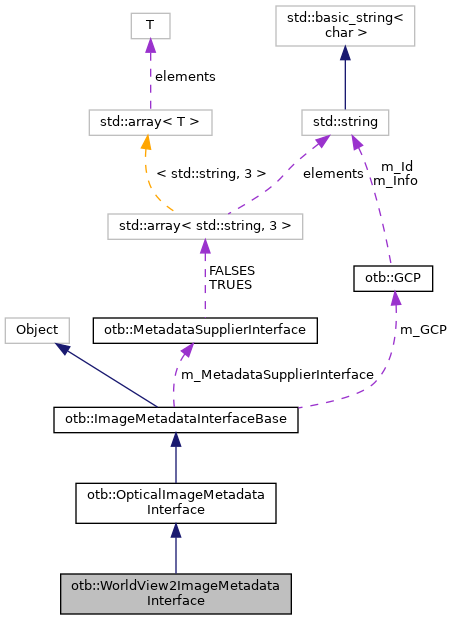

Collaboration diagram for otb::WorldView2ImageMetadataInterface:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::ImageType	ImageType
typedef Superclass::MetaDataDictionaryType	MetaDataDictionaryType
typedef itk::SmartPointer< Self >	Pointer
typedef WorldView2ImageMetadataInterface	Self
typedef ImageMetadataInterfaceBase	Superclass
typedef Superclass::VariableLengthVectorType	VariableLengthVectorType
typedef Superclass::VectorType	VectorType
Public Types inherited from otb::OpticalImageMetadataInterface
typedef itk::SmartPointer< const Self >	ConstPointer
typedef FilterFunctionValues	FilterFunctionValuesType
typedef Superclass::ImageType	ImageType
typedef otb::ObjectList< FilterFunctionValuesType >	InternalWavelengthSpectralBandVectorType
typedef Superclass::MetaDataDictionaryType	MetaDataDictionaryType
typedef itk::SmartPointer< Self >	Pointer
typedef OpticalImageMetadataInterface	Self
typedef ImageMetadataInterfaceBase	Superclass
typedef Superclass::VariableLengthVectorType	VariableLengthVectorType
typedef Superclass::VectorType	VectorType
typedef InternalWavelengthSpectralBandVectorType::Pointer	WavelengthSpectralBandVectorType
Public Types inherited from otb::ImageMetadataInterfaceBase
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::ImageBase< 2 >	ImageType
typedef itk::MetaDataDictionary	MetaDataDictionaryType
typedef itk::SmartPointer< Self >	Pointer
typedef ImageMetadataInterfaceBase	Self
typedef std::vector< std::string >	StringVectorType
typedef itk::Object	Superclass
typedef std::vector< unsigned int >	UIntVectorType
typedef unsigned int	UnsignedIntType
typedef MetaDataKey::VariableLengthVectorType	VariableLengthVectorType
typedef MetaDataKey::VectorType	VectorType

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
virtual const char *	GetNameOfClass () const
void	Parse (ImageMetadata &) override
Public Member Functions inherited from otb::OpticalImageMetadataInterface
virtual unsigned int	BandIndexToWavelengthPosition (unsigned int i) const
Public Member Functions inherited from otb::ImageMetadataInterfaceBase
const MetaDataDictionaryType &	GetMetaDataDictionary () const
std::string	GetProjectionRef () const
void	SetImage (ImageType *image)
void	SetMetaDataDictionary (const MetaDataDictionaryType &dict)
void	SetMetadataSupplierInterface (const MetadataSupplierInterface &)
std::string	GetGCPProjection () const
UnsignedIntType	GetGCPCount () const
GCP &	GetGCPs (unsigned int GCPnum)
std::string	GetGCPId (unsigned int GCPnum) const
std::string	GetGCPInfo (unsigned int GCPnum) const
double	GetGCPRow (unsigned int GCPnum) const
double	GetGCPCol (unsigned int GCPnum) const
double	GetGCPX (unsigned int GCPnum) const
double	GetGCPY (unsigned int GCPnum) const
double	GetGCPZ (unsigned int GCPnum) const
VectorType	GetGeoTransform () const
VectorType	GetUpperLeftCorner () const
VectorType	GetUpperRightCorner () const
VectorType	GetLowerLeftCorner () const
VectorType	GetLowerRightCorner () const
const std::string &	Fetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)
const double &	Fetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)
const MetaData::TimePoint &	Fetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)
const std::string &	Fetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)
const boost::any &	FetchRPC (ImageMetadata &imd, const double lineOffset=0.0, const double sampleOffset=0.0)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	WorldView2ImageMetadataInterface ()=default
	~WorldView2ImageMetadataInterface ()=default
Protected Member Functions inherited from otb::OpticalImageMetadataInterface
	OpticalImageMetadataInterface ()=default
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	~OpticalImageMetadataInterface () override=default
Protected Member Functions inherited from otb::ImageMetadataInterfaceBase
	ImageMetadataInterfaceBase ()=default
	~ImageMetadataInterfaceBase () override=default
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Private Member Functions
void	FetchPhysicalBias (ImageMetadata &)
void	FetchPhysicalGainQuickBird (int bitsPerPixel, const std::unordered_map< std::string, double > &absCalFactor, const std::unordered_map< std::string, int > &TDILevels, ImageMetadata &)
void	FetchSolarIrradianceQuickBird (ImageMetadata &)
void	FetchSolarIrradianceWorldView2 (ImageMetadata &)
void	FetchSpectralSensitivityQuickBird (ImageMetadata &)
void	FetchSpectralSensitivityWorldView2 (ImageMetadata &)
void	operator= (const Self &)=delete
	WorldView2ImageMetadataInterface (const Self &)=delete

Additional Inherited Members
Protected Attributes inherited from otb::ImageMetadataInterfaceBase
MetaDataDictionaryType	m_MetaDataDictionary
const MetadataSupplierInterface *	m_MetadataSupplierInterface = nullptr

Detailed Description

Creation of an "otb" WorldView2ImageMetadataInterface that gets metadata.

Definition at line 35 of file otbWorldView2ImageMetadataInterface.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::WorldView2ImageMetadataInterface::ConstPointer

Definition at line 41 of file otbWorldView2ImageMetadataInterface.h.

ImageType

typedef Superclass::ImageType otb::WorldView2ImageMetadataInterface::ImageType

Definition at line 47 of file otbWorldView2ImageMetadataInterface.h.

MetaDataDictionaryType

typedef Superclass::MetaDataDictionaryType otb::WorldView2ImageMetadataInterface::MetaDataDictionaryType

Definition at line 50 of file otbWorldView2ImageMetadataInterface.h.

Pointer

typedef itk::SmartPointer<Self> otb::WorldView2ImageMetadataInterface::Pointer

Definition at line 40 of file otbWorldView2ImageMetadataInterface.h.

Self

typedef WorldView2ImageMetadataInterface otb::WorldView2ImageMetadataInterface::Self

Definition at line 38 of file otbWorldView2ImageMetadataInterface.h.

Superclass

typedef ImageMetadataInterfaceBase otb::WorldView2ImageMetadataInterface::Superclass

Definition at line 39 of file otbWorldView2ImageMetadataInterface.h.

VariableLengthVectorType

typedef Superclass::VariableLengthVectorType otb::WorldView2ImageMetadataInterface::VariableLengthVectorType

Definition at line 52 of file otbWorldView2ImageMetadataInterface.h.

VectorType

typedef Superclass::VectorType otb::WorldView2ImageMetadataInterface::VectorType

Definition at line 51 of file otbWorldView2ImageMetadataInterface.h.

Constructor & Destructor Documentation

WorldView2ImageMetadataInterface() [1/2]

otb::WorldView2ImageMetadataInterface::WorldView2ImageMetadataInterface ( )

protecteddefault

~WorldView2ImageMetadataInterface()

otb::WorldView2ImageMetadataInterface::~WorldView2ImageMetadataInterface ( )

protecteddefault

WorldView2ImageMetadataInterface() [2/2]

otb::WorldView2ImageMetadataInterface::WorldView2ImageMetadataInterface ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

virtual::itk::LightObject::Pointer otb::WorldView2ImageMetadataInterface::CreateAnother

(

void

)

const

FetchPhysicalBias()

void otb::WorldView2ImageMetadataInterface::FetchPhysicalBias ( ImageMetadata &  )

private

FetchPhysicalGainQuickBird()

void otb::WorldView2ImageMetadataInterface::FetchPhysicalGainQuickBird ( int  bitsPerPixel, const std::unordered_map< std::string, double > &  absCalFactor, const std::unordered_map< std::string, int > &  TDILevels, ImageMetadata &    )

private

FetchSolarIrradianceQuickBird()

void otb::WorldView2ImageMetadataInterface::FetchSolarIrradianceQuickBird ( ImageMetadata &  )

private

FetchSolarIrradianceWorldView2()

void otb::WorldView2ImageMetadataInterface::FetchSolarIrradianceWorldView2 ( ImageMetadata &  )

private

FetchSpectralSensitivityQuickBird()

void otb::WorldView2ImageMetadataInterface::FetchSpectralSensitivityQuickBird ( ImageMetadata &  )

private

FetchSpectralSensitivityWorldView2()

void otb::WorldView2ImageMetadataInterface::FetchSpectralSensitivityWorldView2 ( ImageMetadata &  )

private

GetNameOfClass()

virtual const char* otb::WorldView2ImageMetadataInterface::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from otb::OpticalImageMetadataInterface.

New()

static Pointer otb::WorldView2ImageMetadataInterface::New ( )

static

Method for creation through the object factory.

operator=()

void otb::WorldView2ImageMetadataInterface::operator= ( const Self &  )

privatedelete

Parse()

void otb::WorldView2ImageMetadataInterface::Parse ( ImageMetadata &  )

overridevirtual

Parses the metadata using the MetadataSupplierInterface and fill the ImageMetadata object Raises "MissingMetadataException" if parsing fails.

Reimplemented from otb::ImageMetadataInterfaceBase.

---

The documentation for this class was generated from the following file:

• otbWorldView2ImageMetadataInterface.h
