otb::CosmoImageMetadataInterface Class Reference

#include <otbCosmoImageMetadataInterface.h>

Inheritance diagram for otb::CosmoImageMetadataInterface:

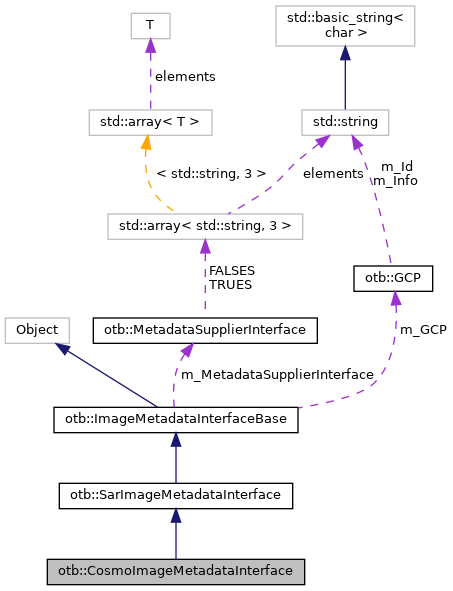

Collaboration diagram for otb::CosmoImageMetadataInterface:

Public Types
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::ImageType	ImageType
typedef Superclass::LookupDataPointerType	LookupDataPointerType
typedef Superclass::MetaDataDictionaryType	MetaDataDictionaryType
typedef itk::SmartPointer< Self >	Pointer
typedef Superclass::RealType	RealType
typedef CosmoImageMetadataInterface	Self
typedef SarImageMetadataInterface	Superclass
typedef Superclass::VariableLengthVectorType	VariableLengthVectorType
typedef Superclass::VectorType	VectorType
Public Types inherited from otb::SarImageMetadataInterface
typedef std::array< int, 2 >	ArrayIndexType
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::ImageType	ImageType
typedef ImageType::IndexType	IndexType
typedef LookupDataType::Pointer	LookupDataPointerType
typedef SarCalibrationLookupData	LookupDataType
typedef Superclass::MetaDataDictionaryType	MetaDataDictionaryType
typedef itk::SmartPointer< Self >	Pointer
typedef PointSetType::Pointer	PointSetPointer
typedef itk::PointSet< double, 2 >	PointSetType
typedef PointSetType::PointType	PointType
typedef double	RealType
typedef SarImageMetadataInterface	Self
typedef Superclass::StringVectorType	StringVectorType
typedef ImageMetadataInterfaceBase	Superclass
typedef Superclass::UIntVectorType	UIntVectorType
typedef Superclass::VariableLengthVectorType	VariableLengthVectorType
typedef Superclass::VectorType	VectorType
Public Types inherited from otb::ImageMetadataInterfaceBase
typedef itk::SmartPointer< const Self >	ConstPointer
typedef itk::ImageBase< 2 >	ImageType
typedef itk::MetaDataDictionary	MetaDataDictionaryType
typedef itk::SmartPointer< Self >	Pointer
typedef ImageMetadataInterfaceBase	Self
typedef std::vector< std::string >	StringVectorType
typedef itk::Object	Superclass
typedef std::vector< unsigned int >	UIntVectorType
typedef unsigned int	UnsignedIntType
typedef MetaDataKey::VariableLengthVectorType	VariableLengthVectorType
typedef MetaDataKey::VectorType	VectorType

Public Member Functions
virtual ::itk::LightObject::Pointer	CreateAnother (void) const
std::vector< BurstRecord >	CreateBurstRecord (const std::string &firstLineTimeStr, const std::string &lastLineTimeStr, const unsigned long endLine, const unsigned long endSample) const
double	GetCenterIncidenceAngle (const MetadataSupplierInterface &) const override
virtual const char *	GetNameOfClass () const
std::vector< Orbit >	getOrbits (const std::string &referenceTime) const
void	Parse (ImageMetadata &) override
void	ParseGdal (ImageMetadata &) override
void	ParseGeom (ImageMetadata &) override
std::vector< std::map< std::string, std::string > >	saveMetadataBands (std::string file)
Public Member Functions inherited from otb::SarImageMetadataInterface
virtual bool	CreateCalibrationLookupData (SARCalib &, const ImageMetadata &, const MetadataSupplierInterface &, const bool) const
std::vector< AzimuthFmRate >	GetAzimuthFmRateGeom () const
std::vector< BurstRecord >	GetBurstRecordsGeom () const
std::vector< DopplerCentroid >	GetDopplerCentroidGeom () const
std::vector< Orbit >	GetOrbitsGeom () const
virtual PointSetPointer	GetRadiometricCalibrationAntennaPatternNewGain () const
virtual ArrayIndexType	GetRadiometricCalibrationAntennaPatternNewGainPolynomialDegree () const
virtual PointSetPointer	GetRadiometricCalibrationAntennaPatternOldGain () const
virtual ArrayIndexType	GetRadiometricCalibrationAntennaPatternOldGainPolynomialDegree () const
virtual PointSetPointer	GetRadiometricCalibrationIncidenceAngle (const MetadataSupplierInterface &) const
virtual ArrayIndexType	GetRadiometricCalibrationIncidenceAnglePolynomialDegree () const
virtual PointSetPointer	GetRadiometricCalibrationNoise (const MetadataSupplierInterface &, const ImageMetadata &, const std::string &b="") const
virtual ArrayIndexType	GetRadiometricCalibrationNoisePolynomialDegree () const
virtual PointSetPointer	GetRadiometricCalibrationRangeSpreadLoss () const
virtual ArrayIndexType	GetRadiometricCalibrationRangeSpreadLossPolynomialDegree () const
virtual double	GetRescalingFactor () const
bool	GetSAR (SARParam &) const
virtual bool	HasCalibrationLookupDataFlag (const MetadataSupplierInterface &) const
void	LoadRadiometricCalibrationData (SARCalib &sarCalib, const MetadataSupplierInterface &mds, const ImageMetadata &imd, const std::string &band="") const
Public Member Functions inherited from otb::ImageMetadataInterfaceBase
const MetaDataDictionaryType &	GetMetaDataDictionary () const
std::string	GetProjectionRef () const
void	SetImage (ImageType *image)
void	SetMetaDataDictionary (const MetaDataDictionaryType &dict)
void	SetMetadataSupplierInterface (const MetadataSupplierInterface &)
std::string	GetGCPProjection () const
UnsignedIntType	GetGCPCount () const
GCP &	GetGCPs (unsigned int GCPnum)
std::string	GetGCPId (unsigned int GCPnum) const
std::string	GetGCPInfo (unsigned int GCPnum) const
double	GetGCPRow (unsigned int GCPnum) const
double	GetGCPCol (unsigned int GCPnum) const
double	GetGCPX (unsigned int GCPnum) const
double	GetGCPY (unsigned int GCPnum) const
double	GetGCPZ (unsigned int GCPnum) const
VectorType	GetGeoTransform () const
VectorType	GetUpperLeftCorner () const
VectorType	GetUpperRightCorner () const
VectorType	GetLowerLeftCorner () const
VectorType	GetLowerRightCorner () const
const std::string &	Fetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (MDStr key, ImageMetadata &imd, const char *path, int band=-1)
const double &	Fetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (MDNum key, ImageMetadata &imd, const char *path, int band=-1)
const MetaData::TimePoint &	Fetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (MDTime key, ImageMetadata &imd, const char *path, int band=-1)
const std::string &	Fetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)
bool	CheckFetch (std::string key, ImageMetadata &imd, const char *path, int band=-1)
const boost::any &	FetchRPC (ImageMetadata &imd, const double lineOffset=0.0, const double sampleOffset=0.0)

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	CosmoImageMetadataInterface ()=default
	~CosmoImageMetadataInterface ()=default
Protected Member Functions inherited from otb::SarImageMetadataInterface
ArrayIndexType	GetConstantPolynomialDegree () const
PointSetPointer	GetConstantValuePointSet (const RealType &value) const
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
	SarImageMetadataInterface ()
	~SarImageMetadataInterface () override=default
Protected Member Functions inherited from otb::ImageMetadataInterfaceBase
	ImageMetadataInterfaceBase ()=default
	~ImageMetadataInterfaceBase () override=default
void	PrintSelf (std::ostream &os, itk::Indent indent) const override

Private Member Functions
	CosmoImageMetadataInterface (const Self &)=delete
void	operator= (const Self &)=delete

Additional Inherited Members
Protected Attributes inherited from otb::ImageMetadataInterfaceBase
MetaDataDictionaryType	m_MetaDataDictionary
const MetadataSupplierInterface *	m_MetadataSupplierInterface = nullptr

Detailed Description

Creation of an "otb" CosmoImageMetadataInterface that gets metadata.

Definition at line 37 of file otbCosmoImageMetadataInterface.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> otb::CosmoImageMetadataInterface::ConstPointer

Definition at line 43 of file otbCosmoImageMetadataInterface.h.

ImageType

typedef Superclass::ImageType otb::CosmoImageMetadataInterface::ImageType

Definition at line 50 of file otbCosmoImageMetadataInterface.h.

LookupDataPointerType

typedef Superclass::LookupDataPointerType otb::CosmoImageMetadataInterface::LookupDataPointerType

Definition at line 57 of file otbCosmoImageMetadataInterface.h.

MetaDataDictionaryType

typedef Superclass::MetaDataDictionaryType otb::CosmoImageMetadataInterface::MetaDataDictionaryType

Definition at line 53 of file otbCosmoImageMetadataInterface.h.

Pointer

typedef itk::SmartPointer<Self> otb::CosmoImageMetadataInterface::Pointer

Definition at line 42 of file otbCosmoImageMetadataInterface.h.

RealType

typedef Superclass::RealType otb::CosmoImageMetadataInterface::RealType

Definition at line 56 of file otbCosmoImageMetadataInterface.h.

Self

typedef CosmoImageMetadataInterface otb::CosmoImageMetadataInterface::Self

Definition at line 40 of file otbCosmoImageMetadataInterface.h.

Superclass

typedef SarImageMetadataInterface otb::CosmoImageMetadataInterface::Superclass

Definition at line 41 of file otbCosmoImageMetadataInterface.h.

VariableLengthVectorType

typedef Superclass::VariableLengthVectorType otb::CosmoImageMetadataInterface::VariableLengthVectorType

Definition at line 55 of file otbCosmoImageMetadataInterface.h.

VectorType

typedef Superclass::VectorType otb::CosmoImageMetadataInterface::VectorType

Definition at line 54 of file otbCosmoImageMetadataInterface.h.

Constructor & Destructor Documentation

CosmoImageMetadataInterface() [1/2]

otb::CosmoImageMetadataInterface::CosmoImageMetadataInterface ( )

protecteddefault

~CosmoImageMetadataInterface()

otb::CosmoImageMetadataInterface::~CosmoImageMetadataInterface ( )

protecteddefault

CosmoImageMetadataInterface() [2/2]

otb::CosmoImageMetadataInterface::CosmoImageMetadataInterface ( const Self &  )

privatedelete

Member Function Documentation

CreateAnother()

virtual::itk::LightObject::Pointer otb::CosmoImageMetadataInterface::CreateAnother

(

void

)

const

CreateBurstRecord()

std::vector<BurstRecord> otb::CosmoImageMetadataInterface::CreateBurstRecord	(	const std::string &	firstLineTimeStr,
		const std::string &	lastLineTimeStr,
		const unsigned long	endLine,
		const unsigned long	endSample
	)		const

GetCenterIncidenceAngle()

double otb::CosmoImageMetadataInterface::GetCenterIncidenceAngle ( const MetadataSupplierInterface &  ) const

overridevirtual

Implements otb::SarImageMetadataInterface.

GetNameOfClass()

virtual const char* otb::CosmoImageMetadataInterface::GetNameOfClass ( ) const

virtual

Run-time type information (and related methods).

Reimplemented from otb::SarImageMetadataInterface.

getOrbits()

std::vector<Orbit> otb::CosmoImageMetadataInterface::getOrbits

(

const std::string &

referenceTime

)

const

New()

static Pointer otb::CosmoImageMetadataInterface::New ( )

static

Method for creation through the object factory.

operator=()

void otb::CosmoImageMetadataInterface::operator= ( const Self &  )

privatedelete

Parse()

void otb::CosmoImageMetadataInterface::Parse ( ImageMetadata &  )

overridevirtual

Parses the metadata using the MetadataSupplierInterface and fill the ImageMetadata object Raises "MissingMetadataException" if parsing fails.

Reimplemented from otb::ImageMetadataInterfaceBase.

ParseGdal()

void otb::CosmoImageMetadataInterface::ParseGdal ( ImageMetadata &  )

overridevirtual

Implements otb::SarImageMetadataInterface.

ParseGeom()

void otb::CosmoImageMetadataInterface::ParseGeom ( ImageMetadata &  )

overridevirtual

Implements otb::SarImageMetadataInterface.

saveMetadataBands()

std::vector<std::map<std::string, std::string> > otb::CosmoImageMetadataInterface::saveMetadataBands

(

std::string

file

)

---

The documentation for this class was generated from the following file:

• otbCosmoImageMetadataInterface.h
